| Nama Wahi | C070VW04 VB |
| Waitohu | AUO |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 450 |
| CR | 1500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |

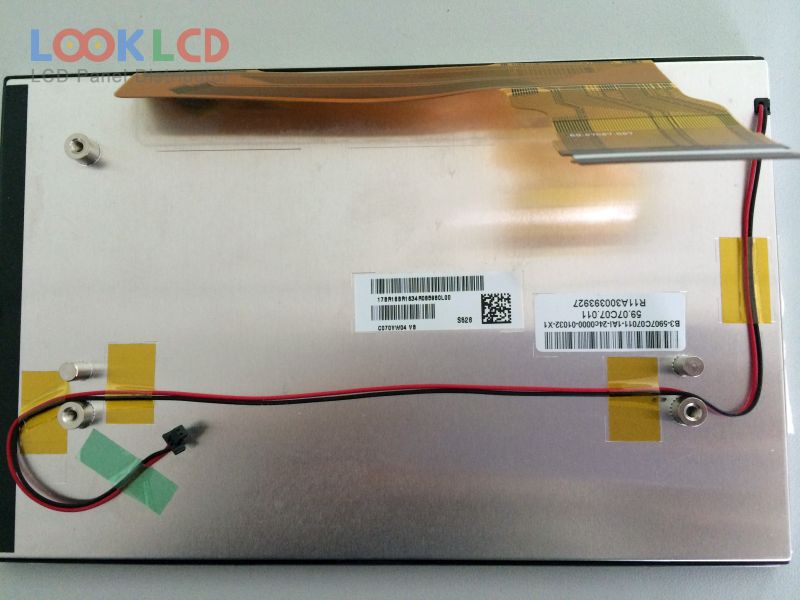

| panel brand | AUO |
| panel model | C070VW04 VB |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | AMVA, Normally Black, Transmissive |
| active area | 152.4×91.44 mm |
| outline | 164.55×105.01 mm |
| surface | Antiglare |
| brightness | 450 cd/m² (Typ.) |
| contrast ratio | 1500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 10/25 (Typ.)(Tr/Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 4S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| input voltage | 3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| application | CNS |
