| Nama Wahi | BTL507212-W749L |
| Waitohu | BOE |
| Rahi | 5.0 |
| Taupānga | MPH |
| Whakatau | 720×1280 |
| Te tito | LCM |
| Tirohanga | |
| CR | 700:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | MIPI |

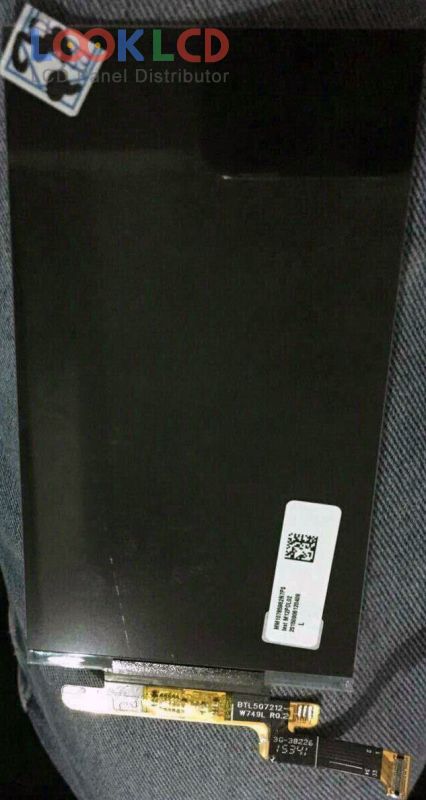

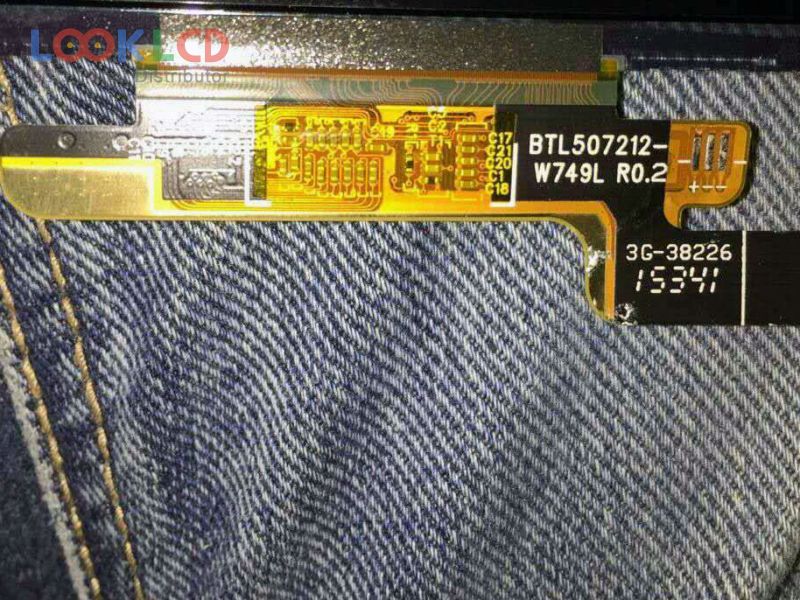

| panel brand | BOE |
| panel model | BTL507212-W749L |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 5.0 inch |
| resolution | 720(RGB)×1280 , WXGA |
| display mode | ADS, Normally Black, Transmissive |
| active area | 62.1×110.4 mm |
| surface | |
| brightness | |
| contrast ratio | 700:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193170% |
| response time | 35 (Typ.)(Tr+Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 27 pins |
| input voltage | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| application | MPH |
| A050FW03 V2 | AUO | 5.0 | 480×272 |
| BTL507212-W677L | BOE | 5.0 | 720×1280 |
| BTL507212-W746L | BOE | 5.0 | 720×1280 |
| BTL507212-W749L | BOE | 5.0 | 720×1280 |
| H497DAN01.0 | AUO | 5.0 | 1080×1920 |
| LA050WQ2-SD02 | LG Display | 5.0 | 480×240 |
| LQ050Q5DR01 | SHARP | 5.0 | 320×240 |
| LQ050T3GG01 | SHARP | 5.0 | 400×234 |
| PA050DS7N1 | E Ink | 5.0 | 320×234 |
| PA050XS1 | E Ink | 5.0 | 320×234 |
| AMS347FF01 | Samsung | 3.5 | 360×640 |
| AMS427GL34-1 | Samsung | 4.3 | 480×800 |
| ET028002DHU | EDT | 2.8 | 240×320 |
| H466TAN01.0 | AUO | 4.7 | 720×1280 |
| H497TLB01 | AUO | 5.0 | 720×1280 |
| L5F30774P01 | Epson | 2.6 | 240×320 |
| LD043WV1-SP01 | LG Display | 4.3 | 480×854 |
| LH240Q29-SH04 | LG Display | 2.4 | 240×320 |
| LH470WX6-SD02 | LG Display | 4.7 | 750×1334 |
| LS047T1SC02 | SHARP | 4.7 | 1080×1920 |
