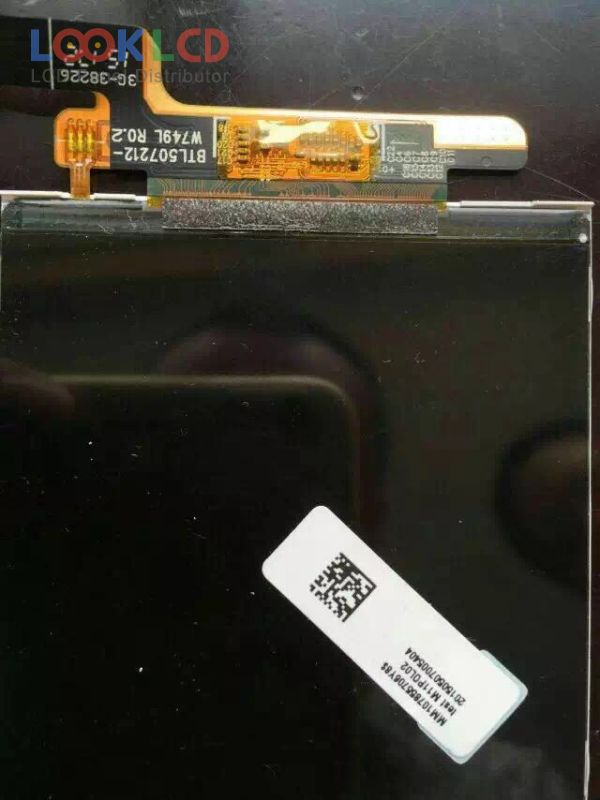

| Nama Wahi | BTL507212-W746L |
| Waitohu | BOE |
| Rahi | 5.0 |
| Taupānga | MPH |
| Whakatau | 720×1280 |
| Te tito | LCM |
| Tirohanga | |
| CR | 700:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | MIPI |
| panel brand | BOE |
| panel model | BTL507212-W746L |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 5.0 inch |
| resolution | 720(RGB)×1280 , WXGA |
| display mode | ADS, Normally Black, Transmissive |
| active area | 62.1×110.4 mm |
| surface | |
| brightness | |
| contrast ratio | 700:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193170% |
| response time | 35 (Typ.)(Tr+Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 27 pins |
| input voltage | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| application | MPH |
