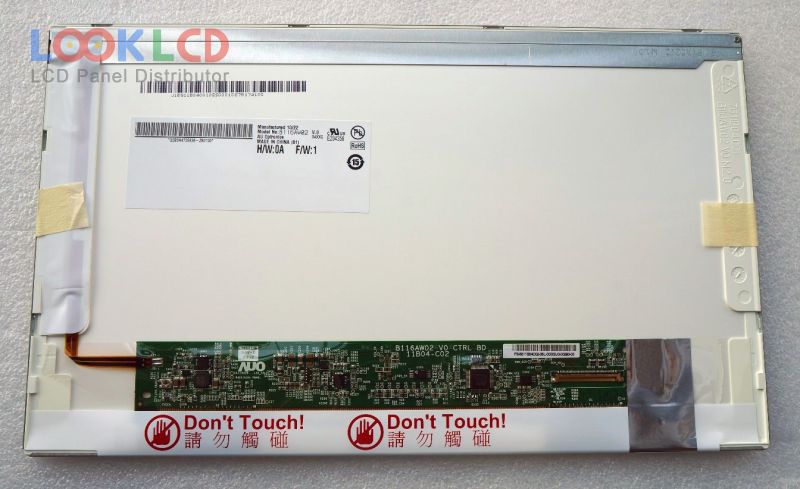

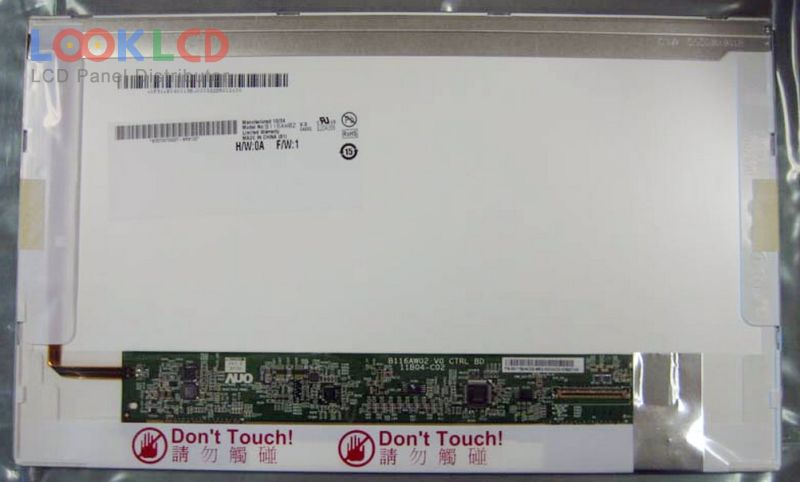

| Nama Wahi | B116AW02 V0 |
| Waitohu | AUO |
| Rahi | 11.6 |
| Taupānga | NOPC |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | AUO |
| panel model | B116AW02 V0 2 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 11.6 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 256.05×144 mm |
| outline | 268×161.5×5.2 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Glare (Haze 0%) |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit), CIE193145% |
| response time | 16 (Typ.)(Tr+Td) |
| viewing angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | NOPC |
