AUO B116XW05 V004 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

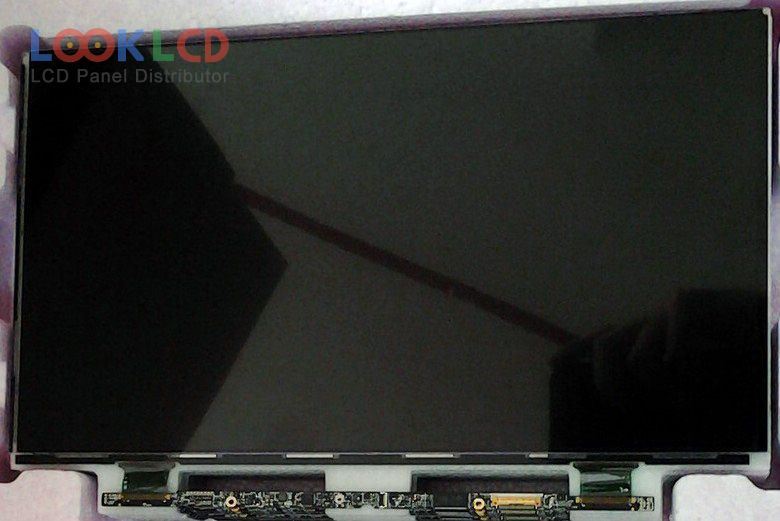

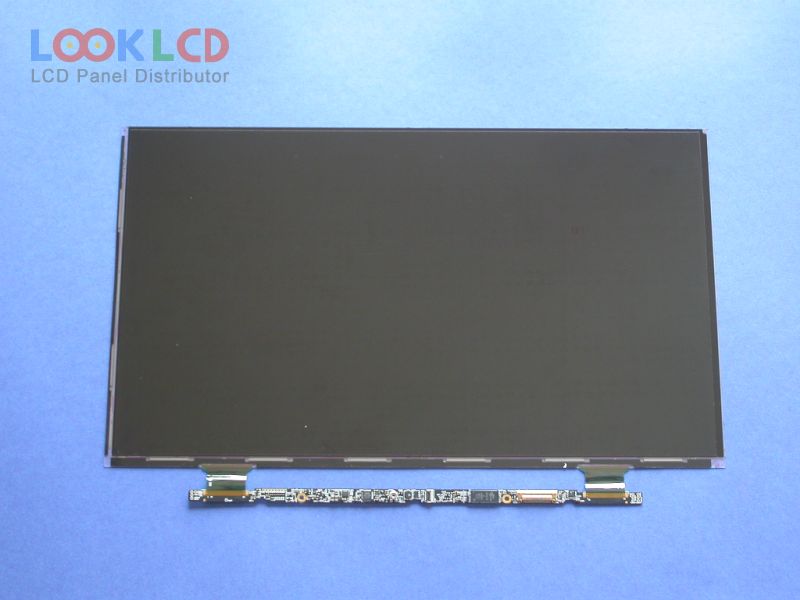

B116XW05 V004

B116XW05 V004
B116XW05 V004
B116XW05 V004
B116XW05 V004 thumb B116XW05 V004 thumb B116XW05 V004 thumb
Waitohu
AUO
Rahi
11.6
Taupānga
NOPC
Whakatau
1366×768
Te tito
CELL
Tirohanga
0
CR
700:1
Nga Tae
262K
Whakamuri
No B/L
Atanga
eDP
In Stock
1200
Whakatakotoranga

Nama Wahi B116XW05 V004
WaitohuAUO
Rahi11.6
TaupāngaNOPC
Whakatau1366×768
Te titoCELL
Tirohanga0
CR700:1
Nga Tae262K
WhakamuriNo B/L
AtangaeDP
panel brandAUO
panel modelB116XW05 V004
panel type a-Si TFT-LCD , CELL
panel size11.6 inch
resolution1366(RGB)×768 , WXGA
display modeTN, Normally White, Transmissive
active area256.125×144 mm
outline289.34×155.9 mm
surfaceGlare (Haze 0%), Hard coating (3H)
glass depth0.30+0.30 mm
transmissivity5.3% (Typ.)(with Polarizer)
contrast ratio700:1 (Typ.)
display colors262K (6-bit), CIE193145%
response time16 (Typ.)(Tr+Td)
viewing angle70/70/60/60 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz

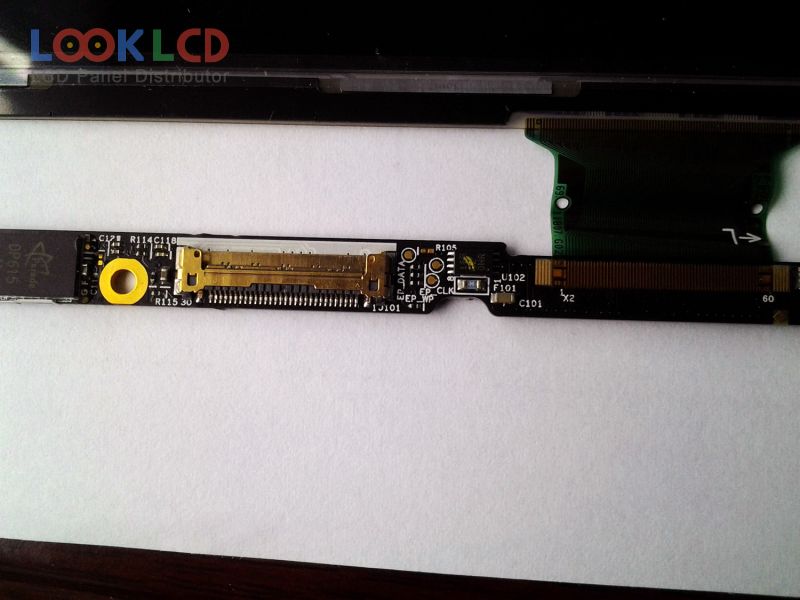

signal interfaceeDP (1 Lane), 30 pins
input voltage3.3V (Typ.)
applicationNOPC
