| Nama Wahi | AM-800600M3TNQW-01H-F |
| Waitohu | AMPIRE |
| Rahi | 8.4 |
| Taupānga | IA |
| Whakatau | 800×600 |
| Te tito | LCM |
| Tirohanga | 450 |
| CR | 600:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | AMPIRE |

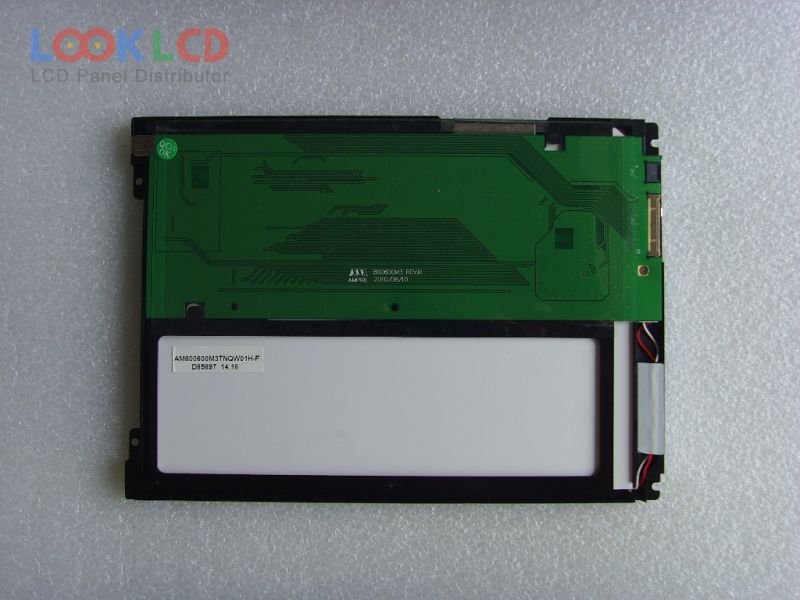

| panel model | AM-800600M3TNQW-01H-F |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.4 inch |
| resolution | 800(RGB)×600 , SVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 170.4×127.8 mm |
| outline | 203×145.5×8.3 mm |
| surface | |
| brightness | 450 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 8 (Typ.)(Tr+Td) |
| viewing angle | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 12S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
