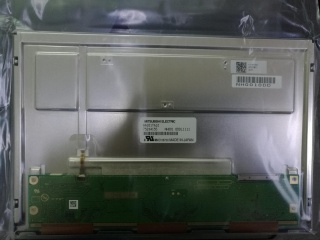

| Nama Wahi | AA101TA12 |
| Waitohu | Mitsubishi |
| Rahi | 10.1 |
| Taupānga | Industrial Outdoor H |
| Whakatau | 1280×800 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | 2 |
| Atanga | LVDS |
| panel brand | Mitsubishi |
| panel size | 10.1" |
| resolution | 1280(RGB)×800, WXGA, 149PPI |
| display area | 216.96(W)×135.6(H) mm |
| outline size | 231(W)×153.5(H) ×9(D) mm |
| brightness | 800 cd/m² (Typ.) |
| viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| best view on | Symmetry |
| display colors | 262K/16.7M 50% NTSC |
| frequency | 60Hz |
| panel weight | 310g |
| signal interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| input voltage | 3.3V (Typ.) |
| environment | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
| panel model | AA101TA12 |
| panel type | a-Si TFT-LCD , LCM |
| pixel format | RGB Vertical Stripe |
| bezel opening | 220.96(W)×139.6(H) mm |
| surface | Antiglare, Hard coating (3H) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| display mode | SWV, Normally Black, Transmissive |
| response time | 12/12 (Typ.)(Tr/Td) |
| lamp type | 2 strings WLED , 100K hours , Without Driver |
| touch screen | Without |
| application | Industrial Outdoor High Brightness |
