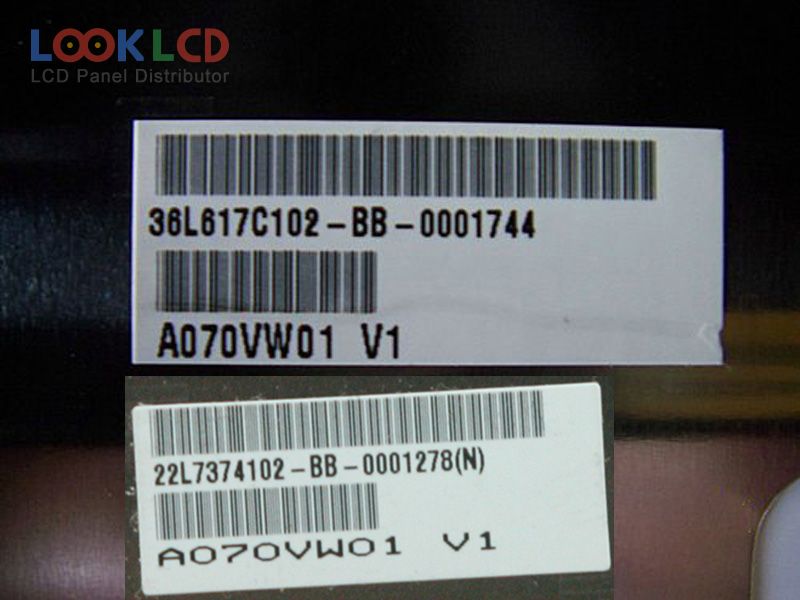

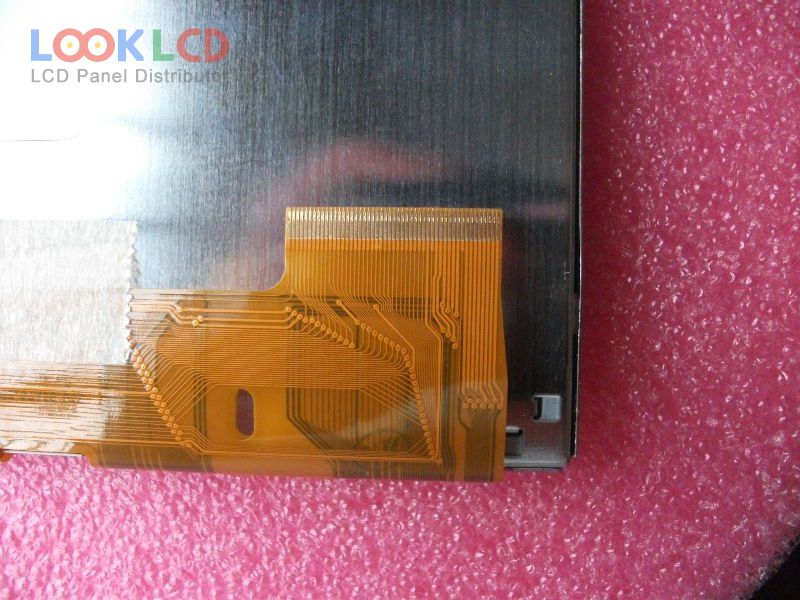

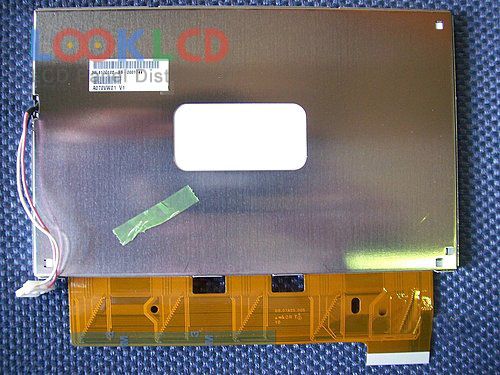

| Nama Wahi | A070VW01 V1 |
| Waitohu | AUO |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 300:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | AUO |
| panel model | A070VW01 V1 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 152.4×91.44 mm |
| outline | 165×104×6.3 mm |
| surface | Antiglare (Haze 5.5%) |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 300:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 12/18 (Typ.)(Tr/Td) |
| viewing angle | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 50 pins |
| input voltage | 3.3/8.8/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| application | CNS |
| A070VTN03.0 | AUO | 7.0 | 800×480 |
| A070VW01 V1 | AUO | 7.0 | 800×480 |
| A070VW01 V2 | AUO | 7.0 | 800×480 |
| A070VW04 V3 | AUO | 7.0 | 800×480 |
| A070VW04 V4 | AUO | 7.0 | 800×480 |
| A070VW05 V0 | AUO | 7.0 | 800×480 |
| A070VW05 V1 | AUO | 7.0 | 800×480 |
| A070VW05 V2 | AUO | 7.0 | 800×480 |
| A070VW08 V0 | AUO | 7.0 | 800×480 |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| G121X1-L01 | Innolux | 12.1 | 1024×768 |
| L5F30614T65 | SANYO | 8.0 | 800×480 |
| LB070WQ4-TM06 | LG Display | 7.0 | 480×234 |
| LQ042T5DZ11 | SHARP | 4.2 | 480×272 |
| NL3224AC35-06 | NLT | 5.5 | 320×240 |
| PW080XU4 | E Ink | 8.0 | 480×220 |
| TD070WGCB1 | TPO | 7.0 | 854×480 |
