| Nama Wahi | YX035CM31 |
| Waitohu | |
| Rahi | 3.5 |
| Taupānga | HHP |
| Whakatau | 320×240 |
| Te tito | LCM |
| Tirohanga | 800 |
| CR | 400:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | Parallel/Serial |
| panel brand | |

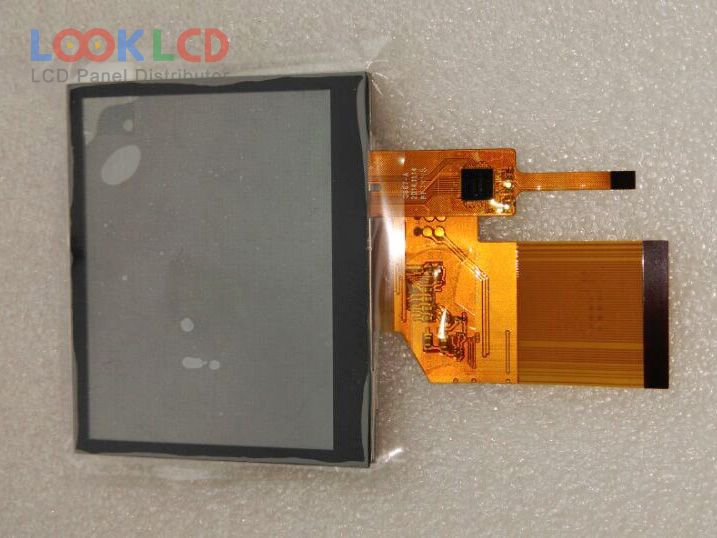

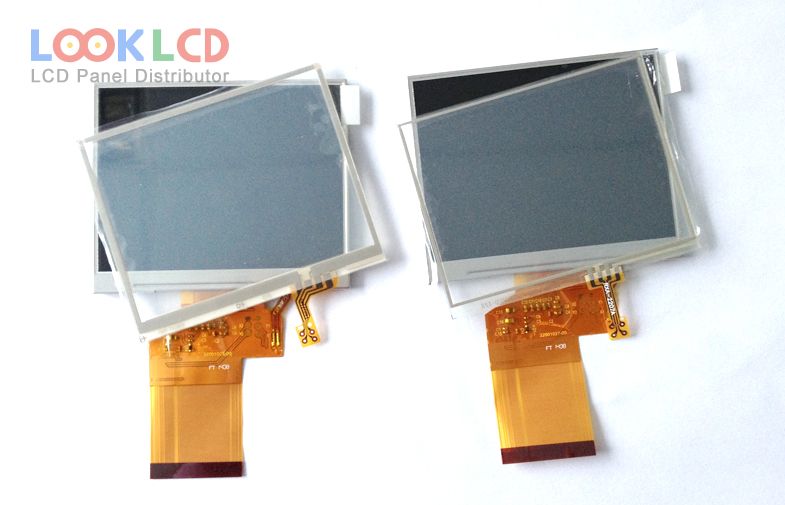

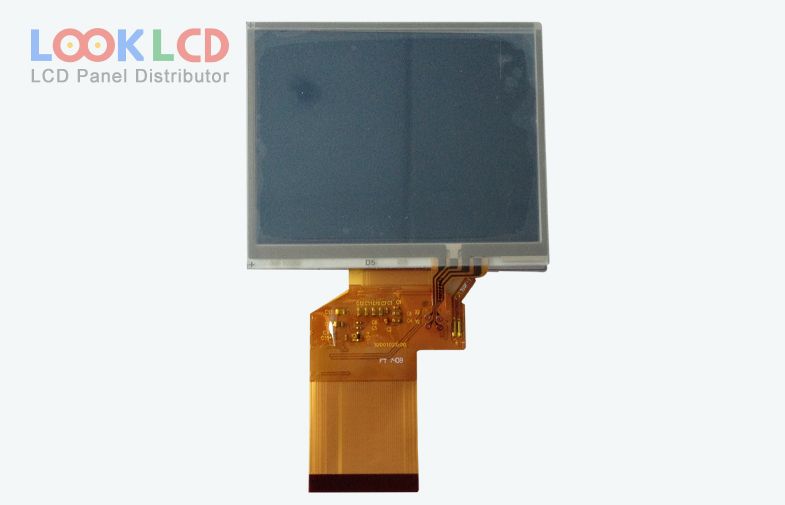

| panel model | YX035CM31 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 3.5 inch |
| resolution | 320(RGB)×240 , QVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 70.08×52.56 mm |
| outline | 76.9×63.9 mm |
| surface | Antiglare (Haze 20%) |
| brightness | 800 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 16.7M (8-bit) |
| response time | 10/15 (Typ.)(Tr/Td) |
| viewing angle | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 5S2PWLEDWithout Driver |
| signal interface | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| input voltage | 3.3/13.9/13.6V (Typ.)(VCC/VGH/VGL) |
| application | HHP |
