| Nama Wahi | WEO002002AW |
| Waitohu | Winstar |
| Rahi | 2.9 |
| Taupānga | Instruments & Meters |
| Whakatau | 5×8 |
| Te tito | OLED , PM-OLED |
| Tirohanga | |
| CR | 2000:1 |
| Nga Tae | Mono(White) |
| Whakamuri | self |
| Atanga | 8-bit |
| manufacturer | Winstar |
| screen size | 2.9 inch |
| char number | 20 characters × 2 lines 6PPI |
| char pitch(mm) | 3.7×5.95 (H×V) |
| active area(mm) | 73.52 × 11.52 (H×V) |
| bezel area(mm) | 75.32 × 13.52 (H×V) |
| luminance | - |
| viewing angle | 88/88/88/88 |
| good view at | Symmetry |
| color depth | Mono(White) |
| mass | - |
| refresh rate | - |
| driver ic list | Built-in COG SSD1311M1Z |
| signal type | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| voltage supply | 3.3/5.0V (Typ.)(VDD) |
| model name | WEO002002AW |
| screen type | OLED , PM-OLED |
| char format | 5×8 dots |
| char size(mm) | 3.22×5.57 (H×V) |

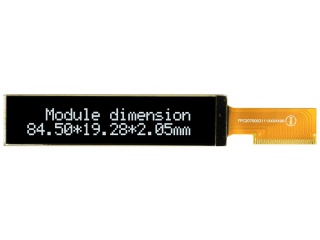

| outline(mm) | 84.5 × 19.2 × 2.15 (H×V×D) |
| treatment | - |
| contrast ratio | 2000 : 1 (Typ.) (TM) |
| response | 0.01 (Typ.) ms |
| work mode | - |
| backlight | self |
| used for | Instruments & Meters |
| touchscreen | Without |
