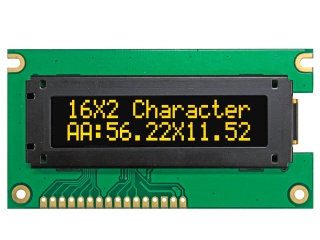

| Nama Wahi | WEO001602GL |
| Waitohu | Winstar |
| Rahi | 2.3 |
| Taupānga | Instruments & Me |
| Whakatau | 5×8 |
| Te tito | PM-OLED, OLED |
| Tirohanga | |
| CR | 2000:1 |
| Nga Tae | Mono(Yellow) |
| Whakamuri | self |
| Atanga | 8-bit |
| brand | Winstar |
| model | WEO001602GL |
| diagonal size | 2.3 inch |
| type | PM-OLED, OLED |
| char format | 5×8 dots |
| font size | 2.97×5.57 mm |
| font pitch | 3.55×5.95 mm |
| active area | 56.22(H)×11.52(V) mm |
| outline dim. | 79(H)×44(V) ×9.67(D) mm |
| bezel area | 58.22(H)×13.52(V) mm |
| treatment | - |
| luminance | - |
| contrast ratio | 2000:1 (Typ.) (TM) |
| view direction | Symmetry |
| response time | 0.01 (Typ.) |
| viewing angle | 88/88/88/88 |
| operating mode | - |
| support color | Mono(Yellow) |
| light source | self |
| weight | - |
| designed for | Instruments & Meters |
| frame rate | - |
| touch panel | Without |
| d-ic detail | COG Built-in SSD1311M1Z |
| interface type | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| power supply | 3.3/5.0V (Typ.)(VDD) |
