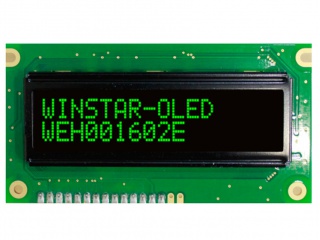

| Nama Wahi | WEH001602EG |
| Waitohu | Winstar |
| Rahi | 2.3 |
| Taupānga | Instruments & Me |
| Whakatau | 16×27 |
| Te tito | PM-OLED, OLED |
| Tirohanga | |
| CR | |
| Nga Tae | Mono(Green) |
| Whakamuri | self |
| Atanga | CPU/SPI |
| panel brand | Winstar |
| panel model | WEH001602EG |
| panel size | 2.3" |
| panel type | PM-OLED, OLED |
| display format | 16 characters × 2 lines, 7PPI |
| font format | 5×8 dots |
| character size | 2.95×5.55(W×H) mm |
| character pitch | 3.6×6.3(W×H) mm |
| display area | 56.95(W)×11.85(H) mm |
| bezel opening | 66(W)×16(H) mm |
| outline size | 84(W)×44(H) ×10(D) mm |
| surface | - |
| viewing angle | - |
| display mode | - |
| best view on | Symmetry |
| response time | - |
| display colors | Mono(Green) |
| lamp type | self |
| frequency | - |
| touch screen | Without |
| driver ic | COBBuilt-in WS0010 |
| panel weight | - |
| application | Instruments & Meters |
| signal interface | CPU/SPI , 16 pins Pad |
| input voltage | 5.0V (Typ.) |
