| Nama Wahi | WEH001602CR |
| Waitohu | Winstar |
| Rahi | 2.3 |
| Taupānga | Instruments & Me |
| Whakatau | 5×8 |
| Te tito | OLED , PM-OLED |
| Tirohanga | |
| CR | |
| Nga Tae | Mono(Red) |
| Whakamuri | self |
| Atanga | CPU/SPI |

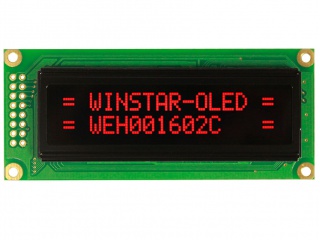

| manufacturer | Winstar |
| model name | WEH001602CR |
| screen size | 2.3 inch |
| screen type | OLED , PM-OLED |
| char number | 16 characters × 2 lines 7PPI |
| char format | 5×8 dots |
| char pitch(mm) | 3.6×6.3 (H×V) |
| char size(mm) | 2.95×5.55 (H×V) |
| active area(mm) | 56.95 × 11.85 (H×V) |
| outline(mm) | 85 × 36 × 10 (H×V×D) |
| bezel area(mm) | 66 × 16 (H×V) |
| treatment | - |
| viewing angle | - |
| response | - |
| good view at | Symmetry |
| work mode | - |
| color depth | Mono(Red) |
| backlight | self |
| mass | - |
| used for | Instruments & Meters |
| refresh rate | - |
| touchscreen | Without |
| driver ic list | Built-in COB WS0010 |
| signal type | CPU/SPI , 15 pins Pad |
| voltage supply | 5.0V (Typ.) |
