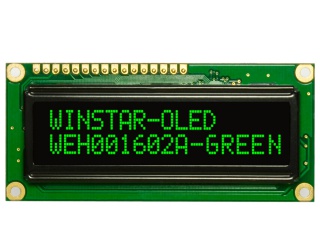

| Nama Wahi | WEH001602AG |
| Waitohu | Winstar |
| Rahi | 2.3 |
| Taupānga | Instruments & Meters |
| Whakatau | 5×8 |
| Te tito | PM-OLED , OLED |
| Tirohanga | |
| CR | 2000:1 |
| Nga Tae | Mono(Green) |
| Whakamuri | self |
| Atanga | CPU/SPI |
| brand | Winstar |
| diagonal size | 2.3 inch |
| char format | 5×8 dots |
| font size | 2.95×5.55 mm |
| active area | 56.95(H)×11.85(V) mm |
| bezel area | 66(H)×16(V) mm |
| luminance | - |
| view direction | Symmetry |
| viewing angle | - |
| support color | Mono(Green) |
| weight | - |
| frame rate | - |
| d-ic detail | COB Built-in WS0010 |
| interface type | CPU/SPI , 16 pins Pad |
| power supply | 5.0V (Typ.) |
| environment | Operating Temperature: -40 ~ 80 °C - |
| model | WEH001602AG |
| type | PM-OLED , OLED |
| font pitch | 3.6×6.3 mm |
| outline dim. | 80(H)×36(V) ×10(D) mm |
| treatment | - |
| contrast ratio | 2000:1 (Typ.) (TM) |
| response time | 0.01 (Typ.) |
| operating mode | - |
| light source | self |
| designed for | Instruments & Meters |
| touch panel | Without |
