| Nama Wahi | WEG010016FR |
| Waitohu | Winstar |
| Rahi | 2.6 |
| Taupānga | Instruments & Meters |
| Whakatau | 100×16 |
| Te tito | OLED , PM-OLED |
| Tirohanga | |
| CR | |
| Nga Tae | Mono(Red) |
| Whakamuri | self |
| Atanga | CPU/SPI |
| manufacturer | Winstar |
| screen size | 2.6 inch |
| pixel number | 100×16 39PPI |
| active area(mm) | 64.95 × 11.15 (H×V) |
| bezel area(mm) | 85 × 18.6 (H×V) |
| viewing angle | - |
| good view at | Symmetry |
| color depth | Mono(Red) |
| mass | - |
| refresh rate | - |
| driver ic list | Built-in COG WS0010 |
| signal type | CPU/SPI , 16 pins Pad |
| voltage supply | 5.0V (Typ.) |
| max. ratings | - Operating Temp.: -40 ~ 80 °C |

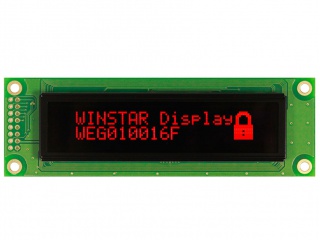

| model name | WEG010016FR |
| screen type | OLED , PM-OLED |
| arrangement | Rectangle |
| outline(mm) | 116 × 37 × 9.8 (H×V×D) |
| treatment | - |
| response | - |
| work mode | - |
| backlight | self |
| used for | Instruments & Meters |
| touchscreen | Without |
