| Nama Wahi | VLT320-SBL-FHD-257 |
| Waitohu | Vitrolight |
| Rahi | 29.3 |
| Taupānga | Digital Signage Stre |
| Whakatau | 1920×708 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 5000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | Vitrolight |
| panel model | VLT320-SBL-FHD-257 |
| panel size | 29.3" (2/3 cut of 32") |
| panel type | a-Si TFT-LCD, LCM |
| resolution | 1920(RGB)×708, 69PPI |
| pixel format | RGB Vertical Stripe |
| display area | 698.4(W)×257.4(H) mm |
| bezel opening | 704.1(W)×259.04(H) mm |
| outline size | 728.27(W)×289.04(H) ×26.5(D) mm |
| surface | - |
| brightness | 700 cd/m² (Typ.) |
| contrast ratio | 5000:1 (Typ.) (TM) |
| viewing angle | 88/88/88/88 (Typ.)(CR≥20) |
| display mode | SVA, Normally Black, Transmissive |
| best view on | Symmetry |
| response time | 8 (Typ.)(G to G) |
| display colors | 16.7M 72% NTSC |
| lamp type | WLED |
| frequency | 60Hz |
| touch screen | Without |
| panel weight | - |

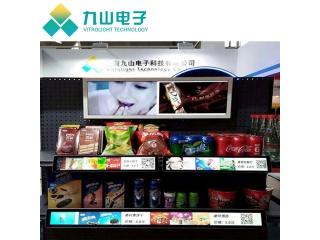

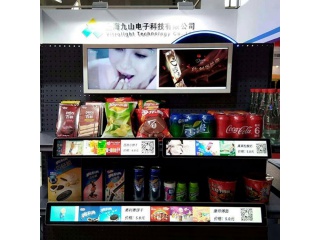

| application | Digital Signage Stretched Bar LCD |
| signal interface | LVDS (2 ch, 8-bit) Connector |
| environment | Operating Temp.: 0 ~ 50 °C ; - |
