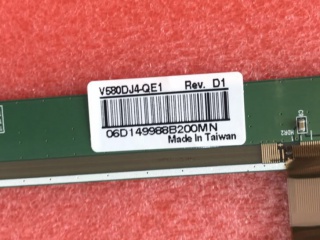

| Nama Wahi | V580DJ4-QE1 Rev.T2 |
| Waitohu | Innolux |
| Rahi | 58 |
| Taupānga | TV Sets |
| Whakatau | 3840×2160 |
| Te tito | CELL, a-Si TFT-LCD |
| Tirohanga | |
| CR | 5000:1 |
| Nga Tae | 1.07B |
| Whakamuri | No |
| Atanga | V-by-One |
| manufacturer | Innolux |
| model name | V580DJ4-QE1 Rev.T2 |
| screen size | 58 inch |
| screen type | CELL, a-Si TFT-LCD |
| pixel number | 3840(RGB)×2160 (UHD) 76PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 1270.08 × 721.44 (H×V) |
| outline(mm) | 1282.88 × 734.44 × 1.32 (H×V×D) |
| bezel area(mm) | - |
| treatment | Hard coating (3H), Reflection 1.8% (Typ.) |
| luminance | 0 cd/m² |
| contrast ratio | 5000 : 1 (Typ.) (TM) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| response | 9.5 (Typ.)(G to G) ms |
| good view at | Symmetry |
| work mode | Super MVA, Normally Black, Transmissive |
| glass thickness | - |
| transmissivity | 5.0% (Typ.)(with Polarizer) |
| color depth | 1.07B 85% NTSC |
| backlight | No B/L |
| mass | 2.80±0.14Kgs |
| used for | TV Sets |
| refresh rate | 60Hz |
| touchscreen | Without |
| driver ic list | Built-in COF 12 source + 12 gate chips |
| signal type | V-by-One 8 lane , Connector 51 pins |
| voltage supply | 12.0V (Typ.) |
| max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
