Innolux V400H1-L03 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

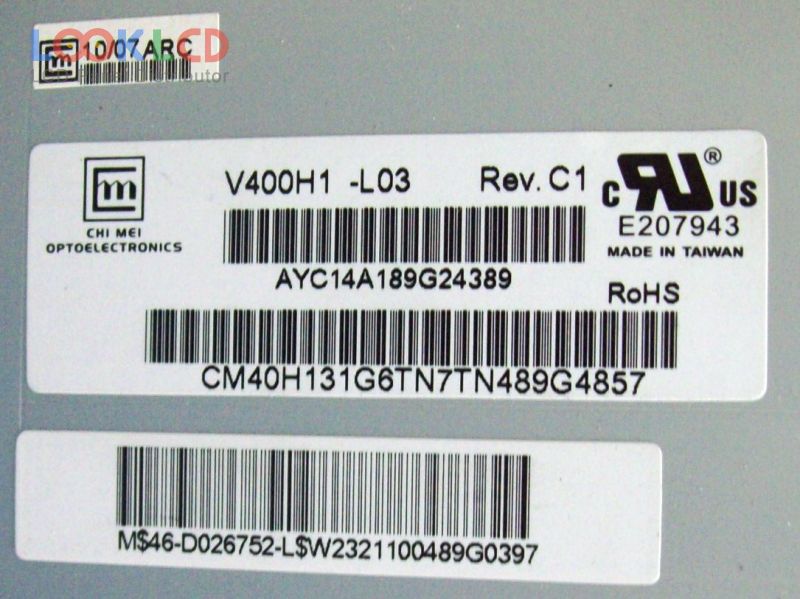

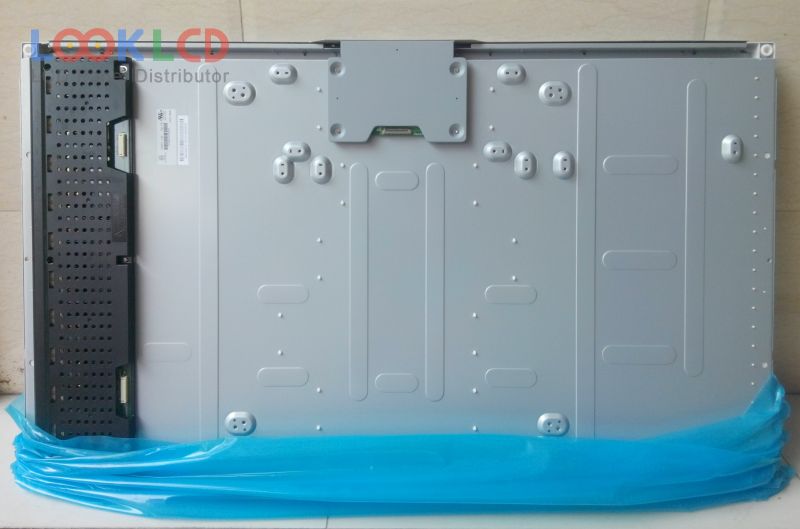

V400H1-L03

V400H1-L03
V400H1-L03
V400H1-L03 thumb V400H1-L03 thumb
Waitohu
Innolux
Rahi
40
Taupānga
LCTV
Whakatau
1920×1080
Te tito
LCM
Tirohanga
500
CR
4000:1
Nga Tae
16.7M
Whakamuri
CCFL
Atanga
LVDS
In Stock
2476
Whakatakotoranga

Nama Wahi V400H1-L03
WaitohuInnolux
Rahi40
TaupāngaLCTV
Whakatau1920×1080
Te titoLCM
Tirohanga500
CR4000:1
Nga Tae16.7M
WhakamuriCCFL
AtangaLVDS
panel brandCMO
panel modelV400H1-L03
panel type a-Si TFT-LCD , LCM
panel size40 inch
resolution1920(RGB)×1080 , FHD
display modeMVA, Normally Black, Transmissive
active area885.6×498.15 mm
outline952×551 mm
surfaceAntiglare (Haze 17%), Hard coating (3H)
brightness500 cd/m² (Typ.)
contrast ratio4000:1 (Typ.)
display colors16.7M (8-bit), CIE193172%
response time6.5 (Typ.)(G to G)
viewing angle88/88/88/88 (Typ.)(CR≥20)(L/R/U/D)
frequency60Hz
lamp type20 pcsCCFLEmbedded (Balance board)
signal interfaceLVDS (2 ch, 8-bit), 51 pins
input voltage12.0V (Typ.)
applicationLCTV
