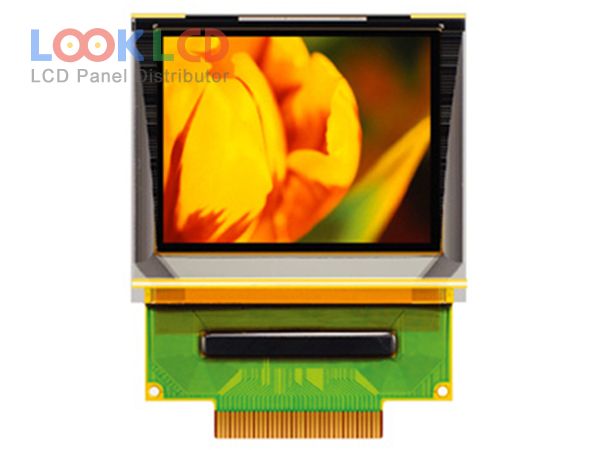

| Nama Wahi | UG-6028GDEAF01 |
| Waitohu | WiseChip |
| Rahi | 1.45 |
| Taupānga | IA |
| Whakatau | 160×128 |
| Te tito | OLED |
| Tirohanga | 100 |
| CR | 2000:1 |
| Nga Tae | 262K |
| Whakamuri | self |
| Atanga | CPU/RGB/SPI |
| panel brand | Univision |
| panel model | UG-6028GDEAF01 |
| panel type | PM-OLED , OLED |
| panel size | 1.45 inch |
| resolution | 160(RGB)×128 |
| active area | 28.78×23.024 mm |
| outline | 35.8×30.8×1.7 mm |
| surface | |
| brightness | 100 cd/m² (Typ.) |
| contrast ratio | 2000 : 1 (Typ.) |
| display colors | 262K (6-bit) |
| viewing angle | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | COF Built-in SEPS525 |
| signal interface | 8/9-bit 8080 parallel, 6-bit RGB, 4-wire SPI, 35 pins |
| input voltage | 2.8/2.8/13V (Typ.)(VDD/VDDIO/VDDH) |
| rohs: | |
| application | IA |
