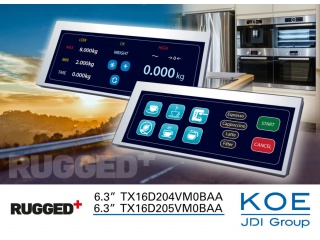

| Nama Wahi | TX16D204VM0BAA |
| Waitohu | KOE |
| Rahi | 6.3 |
| Taupānga | Industrial |
| Whakatau | 800×280 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 262K |
| Whakamuri | 3S3P |
| Atanga | CMOS |
| panel brand | KOE |
| panel size | 6.3" |
| resolution | 800(RGB)×280, 135PPI |
| display area | 150(W)×52.5(H) mm |
| outline size | 167(W)×69(H) ×9.5(D) mm |
| brightness | 500 cd/m² (Typ.) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| best view on | Symmetry |
| display colors | 262K 52% NTSC |
| frequency | 60Hz |
| panel weight | 107g (Typ.) |
| signal interface | CMOS (1 ch, 6-bit) , 50 pins FPC |
| input voltage | 3.3V (Typ.) |
| environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| panel model | TX16D204VM0BAA |
| panel type | a-Si TFT-LCD , LCM |
| pixel format | RGB Vertical Stripe |
| bezel opening | 153(W)×55.5(H) mm |
| surface | - |
| contrast ratio | 1000:1 (Typ.) (TM) |
| display mode | IPS, Normally Black, Transmissive |
| response time | 40 (Typ.)(Tr+Td) |
| lamp type | 3S3P WLED , 50K hours , Without Driver |
| touch screen | Without |
| application | Industrial |
