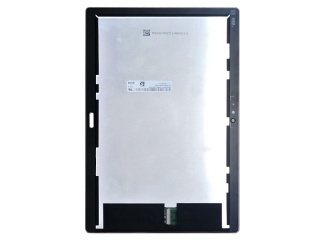

| Nama Wahi | TV101WUM-LL1 |
| Waitohu | BOE |
| Rahi | 10.1 |
| Taupānga | Pad & Tablet |
| Whakatau | 1200×1920 |
| Te tito | a-Si TFT-LCD , Assem |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | 8S4P |
| Atanga | MIPI |
| panel brand | BOE |
| panel size | 10.1" |
| resolution | 1200(RGB)×1920, WUXGA, 225PPI |
| display area | 135.36(W)×216.576(H) mm |
| outline size | 162.1(W)×237.14(H) ×4.6(D) mm |
| brightness | 380 cd/m² (Typ.) |
| viewing angle | 80/80/80/80 (Min.)(CR≥10) |
| best view on | Symmetry |
| display colors | 16.7M 99% sRGB |
| frequency | 60Hz |
| panel weight | 190g (Typ.) |
| signal interface | MIPI (4 data lanes) , 45 pins Connector |
| input voltage | 1.8/5.8/-5.8V (Typ.)(VDDI/AVDD/AVEE) |
| environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| panel model | TV101WUM-LL1 |
| panel type | a-Si TFT-LCD , Assembly |
| pixel format | RGB Vertical Stripe |
| bezel opening | - |
| surface | Hard coating |
| contrast ratio | 1000:1 (Typ.) (TM) |
| display mode | - |
| response time | 30 (Typ.)(Tr+Td) |
| lamp type | 8S4P WLED , Without Driver |
| touch screen | On-Cell Touch |
| application | Pad & Tablet |
