| Nama Wahi | TM103XDKP38-00 |
| Waitohu | TIANMA |
| Rahi | 10.3 |
| Taupānga | Outdoor High Brightn |
| Whakatau | 1920×720 |
| Te tito | LCM, a-Si TFT-LCD |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | 8S3P |
| Atanga | LVDS |
| manufacturer | TIANMA |

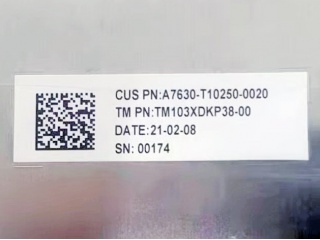

| model name | TM103XDKP38-00 |
| screen size | 10.3 inch |
| screen type | LCM, a-Si TFT-LCD |
| pixel number | 1920(RGB)×720 200PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 243.648 × 91.368 (H×V) |
| outline(mm) | 261.04 × 109.3 (H×V×D) |
| bezel area(mm) | - |
| treatment | Hard coating, Reflection 5.5% (Typ.) |
| luminance | 800 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| response | 20 (Typ.)(Tr+Td) ms |
| good view at | Symmetry |
| work mode | SFT, Normally Black, Transmissive |
| color depth | 16.7M 74% NTSC |
| backlight | 8S3P WLED , 10K hours , No Driver |
| mass | TBD |
| used for | Outdoor High Brightness Automotive Display |
| refresh rate | 60Hz |
| touchscreen | Without |
| signal type | LVDS (2 ch, 8-bit) , Connector 50 pins |
| voltage supply | 3.3/3.3V (Typ.)(VDD/AVDD) |
| max. ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |
