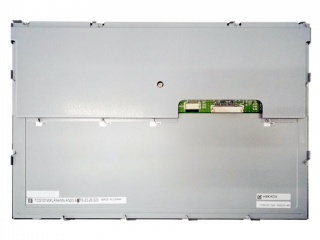

| Nama Wahi | TCG101WXLPAANN-AN20-SA |
| Waitohu | Kyocera |
| Rahi | 10.1 |
| Taupānga | Industrial |
| Whakatau | 1280×800 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 800:1 |
| Nga Tae | 16.2M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | Kyocera |
| panel model | TCG101WXLPAANN-AN20-SA |
| panel size | 10.1" |
| panel type | a-Si TFT-LCD, LCM |
| resolution | 1280(RGB)×800, WXGA, 149PPI |
| pixel format | RGB Vertical Stripe |
| display area | 216.96(W)×135.6(H) mm |
| bezel opening | 219.96(W)×138.6(H) mm |
| outline size | 236(W)×156.8(H) ×9.9(D) mm |
| surface | Antiglare |
| brightness | 500 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| display mode | TN, Normally White, Transmissive |
| best view on | - |
| response time | 8/22 (Typ.)(Tr/Td) |
| display colors | 16.2M 52% NTSC |
| lamp type | WLED , 50K hours , With LED Driver |
| frequency | 60Hz |
| touch screen | Without |
| panel weight | 500g (Typ.) |
| application | Industrial |
| signal interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| input voltage | 3.3V (Typ.) |
| environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
