Nama Wahi | T550QVR08.4 CELL |
Waitohu | AUO |
Rahi | 55 |
Taupānga | TV Sets |
Whakatau | 3840×2160 |
Te tito | a-Si TFT-LCD , CELL |
Tirohanga | |
CR | 3500:1 |
Nga Tae | 1.07B |
Whakamuri | No |
Atanga | V-by-One |
brand | AUO |
diagonal size | 55 inch |
pixel format | 3840(RGB)×2160 [UHD] 80PPI |
active area | 1209.6(H)×680.4(V) mm |
bezel area | - |
luminance | 0 cd/m² |
view direction | Symmetry |
viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
plate thickness | - |
support color | 1.07B 74% NTSC |
weight | 2.51Kgs (Typ.) |
frame rate | 60Hz |
d-ic detail | COF Built-in 12 source chips |
interface type | V-by-One 8 lane , 51 pins Connector |
power supply | 12.0V (Typ.) |
environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

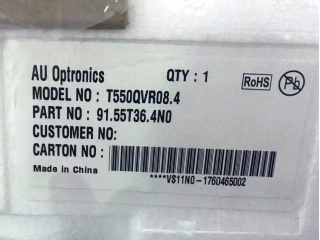

model | T550QVR08.4 CELL |
type | a-Si TFT-LCD , CELL |
configuration | RGB Vertical Stripe |
outline dim. | 1219.6(H)×691.9(V) ×1.32(D) mm |
treatment | Antiglare (Haze 2%), Hard coating (3H) |
contrast ratio | 3500:1 (Typ.) (TM) |
response time | 8 (Typ.)(G to G) |
operating mode | AMVA3, Normally Black, Transmissive |
transmittance | 5.1% (Typ.)(with Polarizer) |
light source | No B/L |
designed for | TV Sets |
touch panel | Without |
