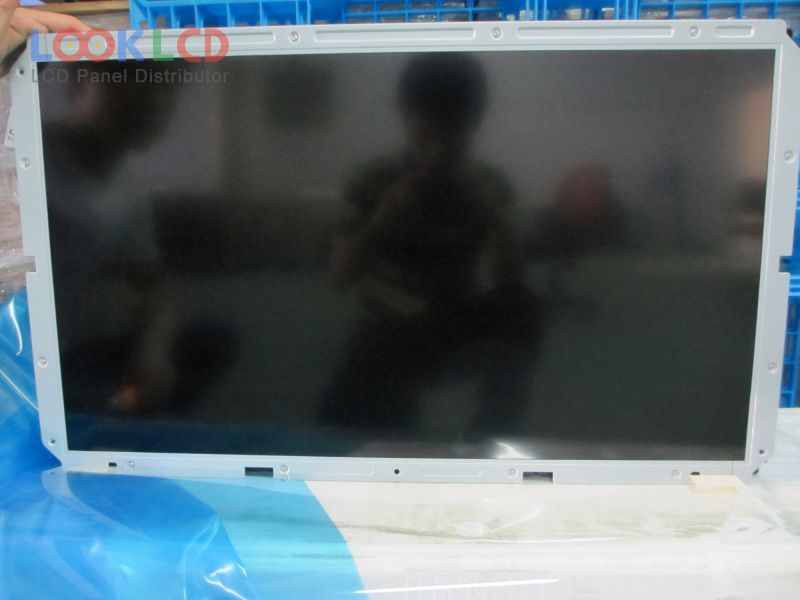

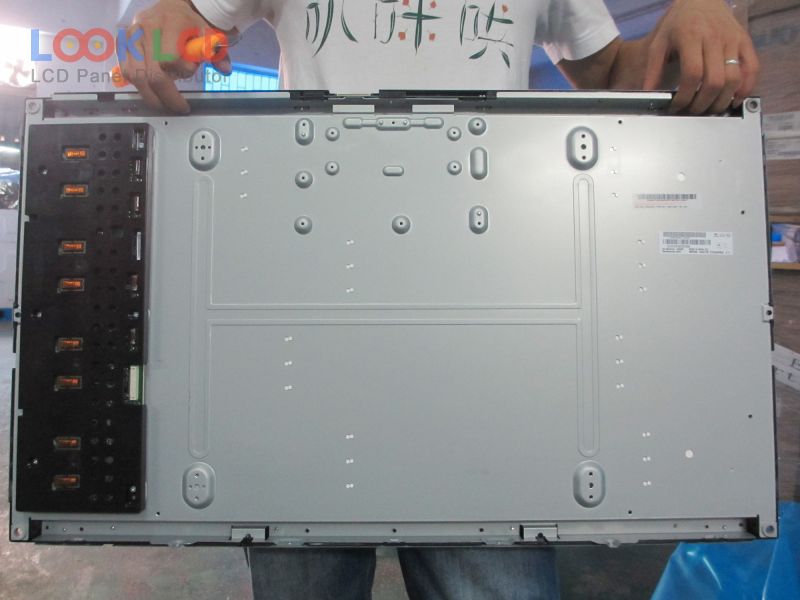

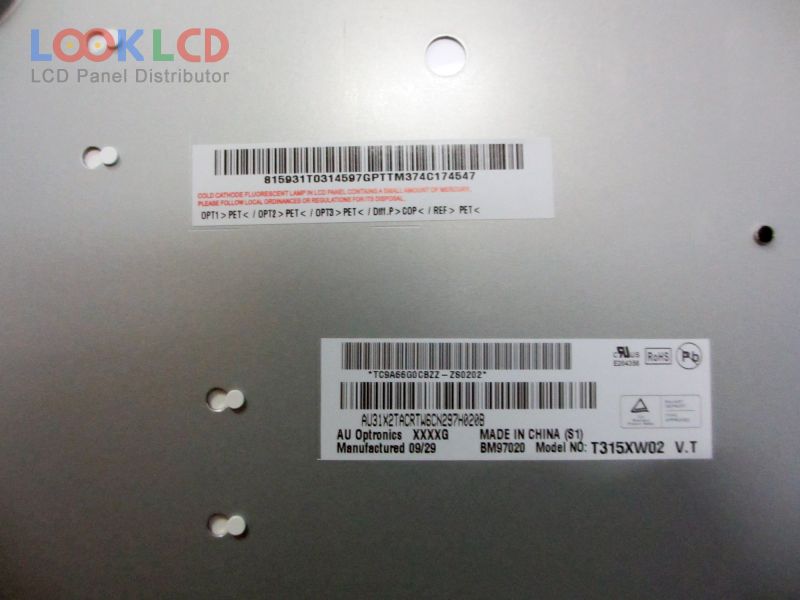

| Nama Wahi | T315XW02 VT |
| Waitohu | AUO |
| Rahi | 31.5 |
| Taupānga | LCTV |
| Whakatau | 1366×768 |
| Te tito | LCM |
| Tirohanga | 420 |
| CR | 3000:1 |
| Nga Tae | 16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | AUO |
| panel model | T315XW02 VT |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 31.5 inch |
| resolution | 1366(RGB)×768 , WXGA |
| display mode | AMVA, Normally Black, Transmissive |
| active area | 697.685×392.256 mm |
| outline | 760×450 mm |
| surface | Antiglare (Haze 11%), Hard coating (3H) |
| brightness | 420 cd/m² (Typ.) |
| contrast ratio | 3000:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193172% |
| response time | 6.5 (Typ.)(G to G) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | CCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| input voltage | 12.0V (Typ.) |
| application | LCTV |
