Nama Wahi | T216XW01 V2 |
Waitohu | AUO |
Rahi | 21.6 |
Taupānga | LCTV |
Whakatau | 1366×768 |
Te tito | LCM |
Tirohanga | 350 |
CR | 2500:1 |
Nga Tae | 16.7M |
Whakamuri | CCFL |
Atanga | LVDS |
panel brand | AUO |

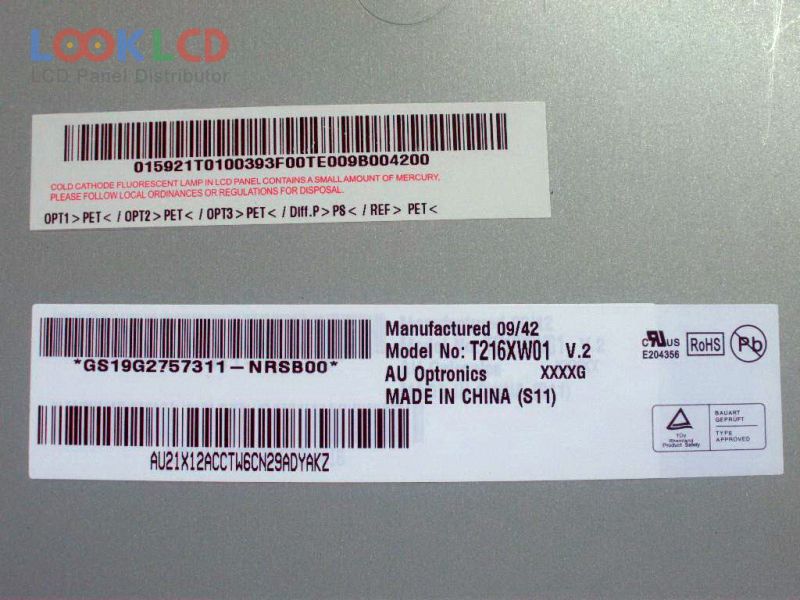

panel model | T216XW01 V2 |
panel type | a-Si TFT-LCD , LCM |
panel size | 21.6 inch |
resolution | 1366(RGB)×768 , WXGA |
display mode | VA, Normally Black, Transmissive |
active area | 477.417×268.416 mm |
outline | 523×315 mm |
surface | Antiglare (Haze 11%), Hard coating (3H) |
brightness | 350 cd/m² (Typ.) |
contrast ratio | 2500:1 (Typ.) |
display colors | 16.7M (8-bit), CIE193172% |
response time | 6.5 (Typ.)(G to G) |
viewing angle | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
frequency | 60Hz |
lamp type | 3 pcsCCFLWithout Driver |
signal interface | LVDS (1 ch, 8-bit), 30 pins |
input voltage | 5.0V (Typ.) |
application | LCTV |
