| Nama Wahi | SX21V001-Z4A |
| Waitohu | KOE |
| Rahi | 8.2 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 60 |
| CR | 50:1 |
| Nga Tae | Color |
| Whakamuri | CCFL |
| Atanga | Parallel Data |

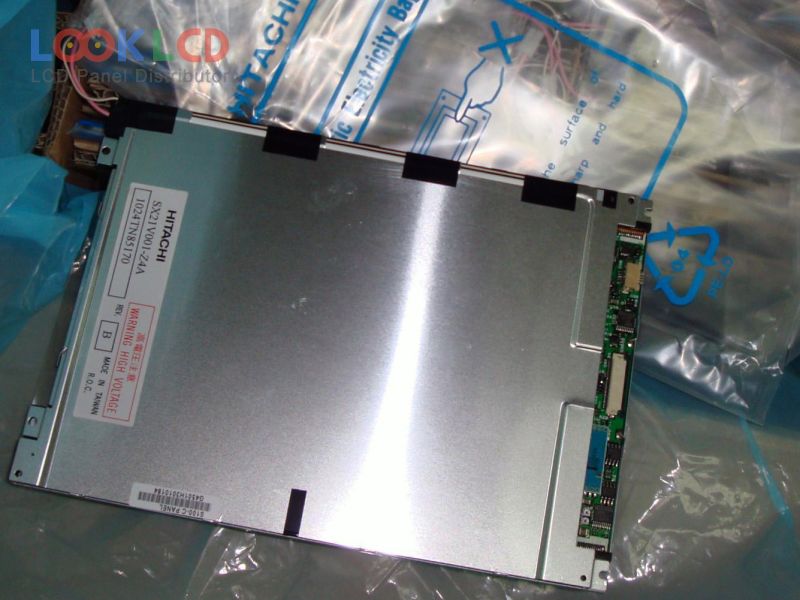

| panel brand | HITACHI |
| panel model | SX21V001-Z4A |
| panel type | CSTN-LCD , LCM |
| panel size | 8.2 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | STN, Normally Black, Transmissive |
| active area | 167.02×125.26 mm |
| outline | 203×142.5×8 mm |
| surface | Hard coating (2H) |
| brightness | 60 cd/m² (Typ.) |
| contrast ratio | 50:1 (Typ.) |
| display colors | Color |
| response time | 190/160 (Typ.)(Tr/Td) |
| viewing angle | 40 (Typ.)(CR≥2, Φ2-Φ1)(L/R/U/D) |
| frequency | 120Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (8-bit), 35 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
