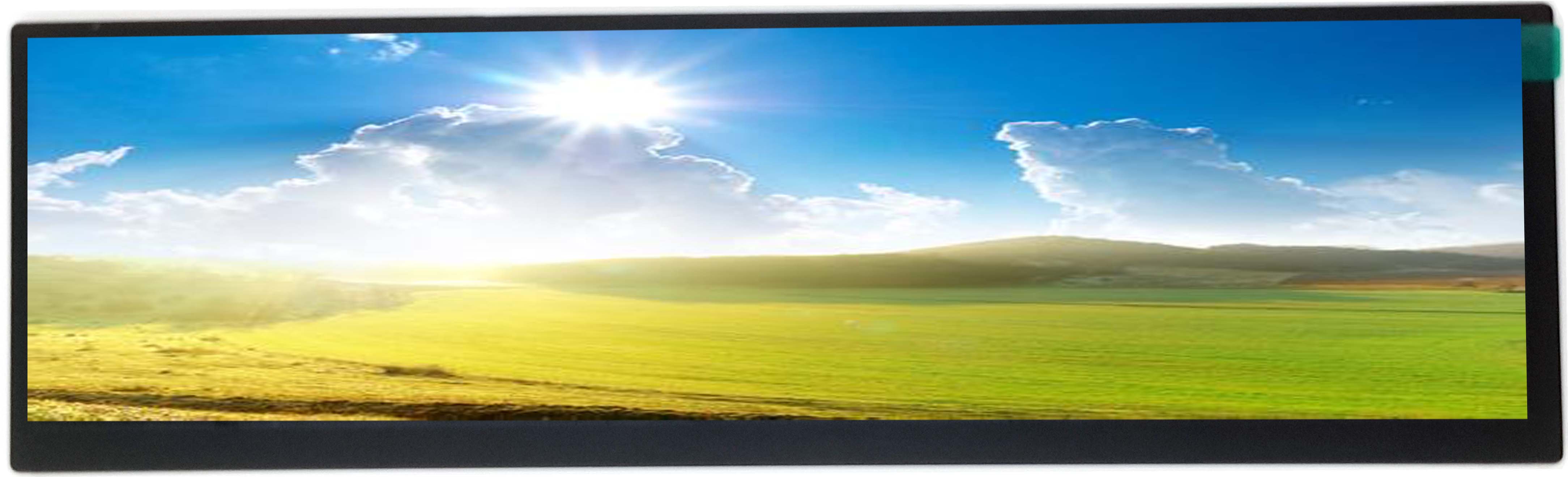

| Nama Wahi | S088WU02 |
| Waitohu | CDTECH |
| Rahi | 8.8 |
| Taupānga | Industrial Stretched |
| Whakatau | 1920×480 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | 4S9P |
| Atanga | LVDS |
| panel brand | CDTECH |
| panel size | 8.8" (2/5 cut of 10.1") |
| resolution | 1920(RGB)×480, 224PPI |
| display area | 216.86(W)×54.22(H) mm |
| outline size | 229.66(W)×67.5(H) ×4.3(D) mm |
| brightness | 600 cd/m² (Typ.) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| best view on | Symmetry |
| display colors | 16.7M |
| frequency | 60Hz |
| panel weight | - |
| signal interface | LVDS (1 ch, 8-bit) , 40 pins Connector |
| input voltage | 3.3/9.89/21.88/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| environment | Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| panel model | S088WU02 |
| panel type | a-Si TFT-LCD , LCM |
| pixel format | RGB Vertical Stripe |
| bezel opening | 221.2(W)×57.84(H) mm |
| surface | Hard coating |
| contrast ratio | 800:1 (Typ.) (TM) |
| display mode | IPS, Normally Black, Transmissive |
| response time | 25 (Typ.)(Tr+Td) |
| lamp type | 4S9P WLED , 30K hours , Without Driver |
| touch screen | Without |
| application | Industrial Stretched Bar LCD |
