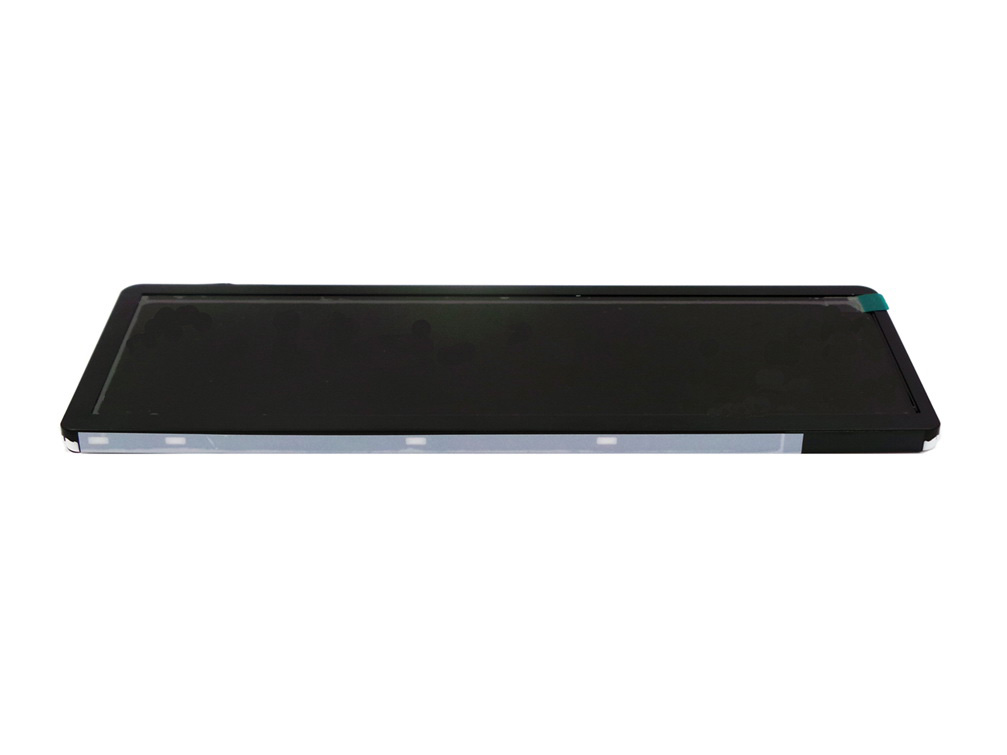

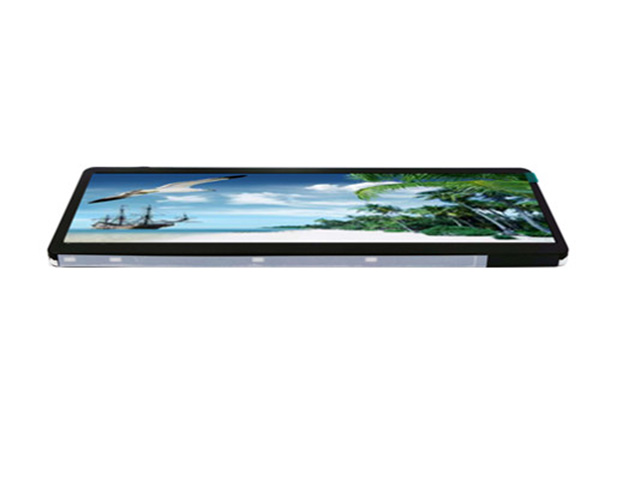

| Nama Wahi | S072WX02 |
| Waitohu | CDTECH |
| Rahi | 7.2 |
| Taupānga | Automotive Display I |
| Whakatau | 1280×370 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 400:1 |
| Nga Tae | 262K |
| Whakamuri | 5S6P |
| Atanga | Parallel |
| manufacturer | CDTECH |
| model name | S072WX02 |
| screen size | 7.2 inch (1/2 cut of 8.0") |
| screen type | LCM , a-Si TFT-LCD |
| pixel number | 1280(RGB)×370 187PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 173.76 × 50.23 (H×V) |
| outline(mm) | 186.18 × 67.35 (H×V×D) |
| bezel area(mm) | 177.16 × 55.53 (H×V) |
| treatment | - |
| luminance | 1000 cd/m² (Typ.) |
| contrast ratio | 400 : 1 (Typ.) (TM) |
| viewing angle | 65/65/55/65 (Typ.)(CR≥10) |
| response | 25/25 (Typ.)(Tr/Td) ms |
| good view at | 12 o'clock |
| work mode | TN, Normally White, Transmissive |
| color depth | 262K 51% NTSC |
| backlight | 5S6P WLED , 30K hours , No Driver |
| mass | TBD |
| used for | Automotive Display Industrial Outdoor High Brightness Stretched Bar LCD |
| refresh rate | 60Hz |
| touchscreen | Without |
| signal type | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| voltage supply | 3.3/12.63/22/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| max. ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
