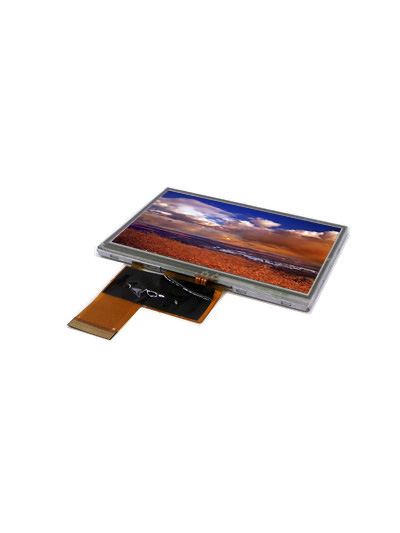

| Nama Wahi | S043WQ07H-T |
| Waitohu | CDTECH |
| Rahi | 4.3 |
| Taupānga | Automotive Display I |
| Whakatau | 480×272 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 500:1 |
| Nga Tae | 16.7M |
| Whakamuri | 5S2P |
| Atanga | Parallel |
| panel brand | CDTECH |
| panel size | 4.3" |
| resolution | 480(RGB)×272, WQVGA, 128PPI |
| display area | 95.04(W)×53.856(H) mm |
| outline size | 105.5(W)×67.2(H) ×4.35(D) mm |
| brightness | 400 cd/m² (Typ.) |
| viewing angle | 65/65/55/65 (Typ.)(CR≥10) |
| best view on | 6 o'clock |
| display colors | 16.7M |
| frequency | 60Hz |
| panel weight | TBD |
| signal interface | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| input voltage | 3.3V (Typ.) |
| environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| panel model | S043WQ07H-T 1 Compatible |
| panel type | a-Si TFT-LCD , LCM |
| pixel format | RGB Vertical Stripe |
| bezel opening | 97.84(W)×56.66(H) mm |
| surface | - |
| contrast ratio | 500:1 (Typ.) (TM) |
| display mode | TN, Normally White, Transmissive |
| response time | 10/15 (Typ.)(Tr/Td) |
| lamp type | 5S2P WLED , 25K hours , Without Driver |
| touch screen | 4-wire Resistive Touch |
| application | Automotive Display Industrial |
| 43WVF1G | SII | 4.3 | 800×480 |
| A043FW03 V2 | AUO | 4.3 | 480×272 |
| AM480272H3TMQW-W2H | AMPIRE | 4.3 | 480×272 |
| DLC0430LZG-6 | Other | 4.3 | 480×272 |
| ED043CA-01D | Innolux | 4.3 | 480×272 |
| LMS430HF01-013 | Samsung | 4.3 | |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| LTE430WQ-F07 | Samsung | 4.3 | 480×272 |
| TD043MTEA2 | TPO | 4.3 | 800×480 |
