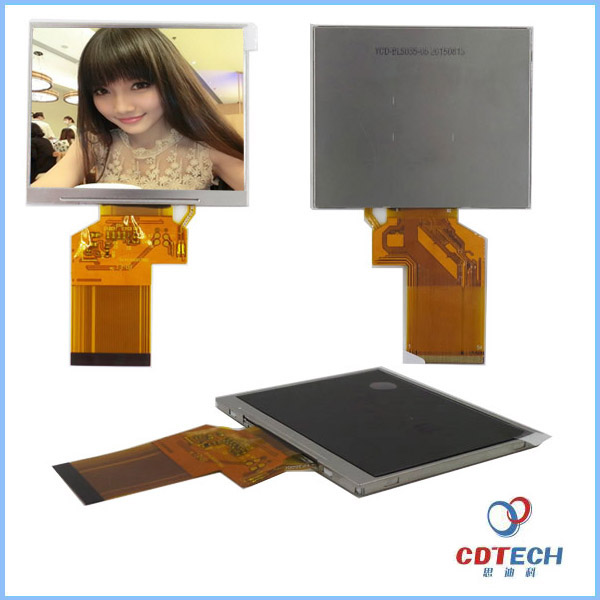

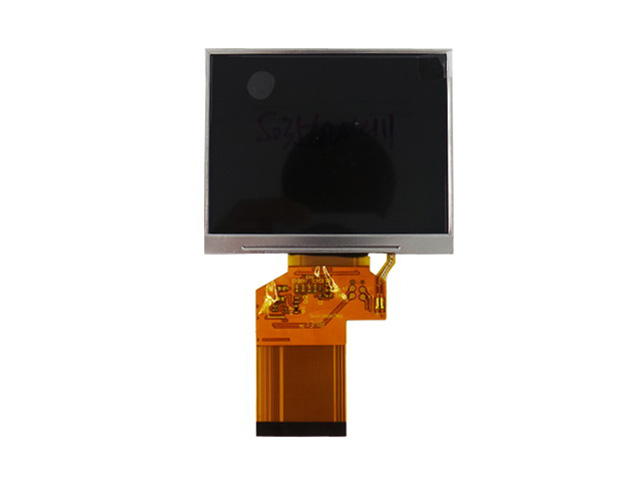

| Nama Wahi | S035LQNC111 |
| Waitohu | CDTECH |
| Rahi | 3.5 |
| Taupānga | Automotive Display I |
| Whakatau | 320×240 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 350:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | Parallel |
| brand | CDTECH |
| diagonal size | 3.5 inch |
| pixel format | 320(RGB)×240 [QVGA] 115PPI |
| active area | 70.08(H)×52.56(V) mm |
| bezel area | 71.3(H)×55.5(V) mm |
| luminance | 350 cd/m² (Typ.) |
| view direction | 12 o'clock |
| viewing angle | 65/65/65/55 (Typ.)(CR≥10) |
| support color | 16.7M 50% NTSC |
| weight | TBD |
| frame rate | 60Hz |
| interface type | Parallel RGB (1 ch, 8-bit) + SPI , 54 pins FPC |
| power supply | 3.3V (Typ.) |
| environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | S035LQNC111 2 Compatible |
| type | a-Si TFT-LCD , LCM |
| configuration | RGB Vertical Stripe |
| outline dim. | 76.9(H)×63.9(V) ×3.46(D) mm |
| treatment | Hard coating |
| contrast ratio | 350:1 (Typ.) (TM) |
| response time | 25/25 (Typ.)(Tr/Td) |
| operating mode | TN, Normally White, Transmissive |
| light source | WLED [6S1P] , 25K hours , W/O Driver |
| designed for | Automotive Display Industrial Handheld & PDA |
| touch panel | Without |
