Other OEL9M5001-R-E Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

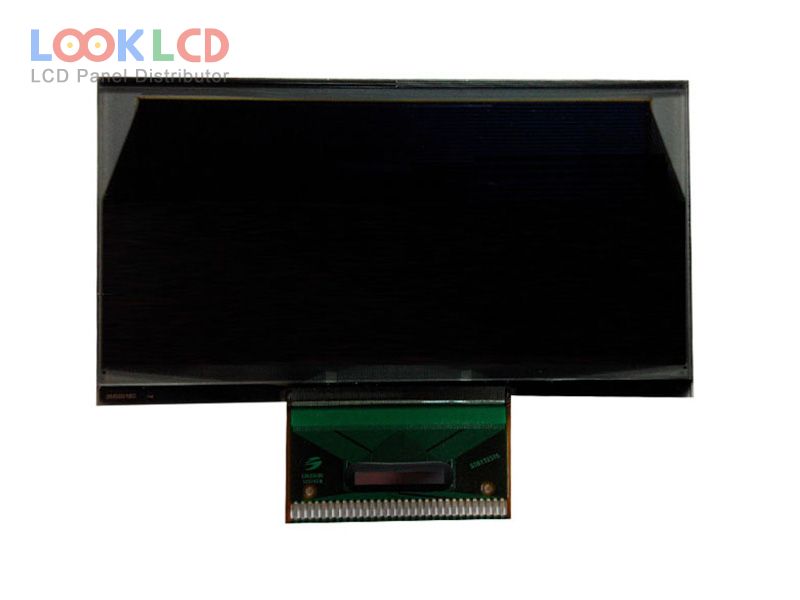

OEL9M5001-R-E

OEL9M5001-R-E
OEL9M5001-R-E thumb
Waitohu
Other
Rahi
2.7
Taupānga
Whakatau
128×64
Te tito
OLED
Tirohanga
CR
10000:1
Nga Tae
Grayscale(R)
Whakamuri
self
Atanga
CPU/SPI
In Stock
10906
Whakatakotoranga

Nama Wahi OEL9M5001-R-E
WaitohuOther
Rahi2.7
Taupānga
Whakatau128×64
Te titoOLED
Tirohanga
CR10000:1
Nga TaeGrayscale(R)
Whakamuriself
AtangaCPU/SPI
panel brandTRULY
panel modelOEL9M5001-R-E
panel type PM-OLED , OLED
panel size2.7 inch
resolution128×64
active area61.41×30.69 mm
outline73×40.24×2.15 mm
surface
brightness
contrast ratio10000 : 1 (Min.)
display colorsGrayscale(R) (4-bit)
viewing angle80/80/80/80 (Min.)(L/R/U/D)
frequency100Hz
driver icTAB Built-in SSD1325T6R1
signal interface8-bit 6800/8080 parallel, SPI, 30 pins
input voltage3.0/13.0V (Typ.)(VDD/VCC)
Tauira Whanau
OEL9M5001-B-E Other 2.7 128×64
OEL9M5001-G-E Other 2.7 128×64
OEL9M5001-R-E Other 2.7 128×64
OEL9M5001-W-E Other 2.7 128×64
OEL9M5001-Y-E Other 2.7 128×64
OEL9M5003-B-E Other 2.7 128×64
OEL9M5003-G-E Other 2.7 128×64
OEL9M5003-R-E Other 2.7 128×64
OEL9M5003-W-E Other 2.7 128×64
OEL9M5003-Y-E Other 2.7 128×64
