| Nama Wahi | NV166FHM-N41 |
| Waitohu | BOE |
| Rahi | 16.6 |
| Taupānga | Laptop Gaming |
| Whakatau | 1920×1080 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 1200:1 |
| Nga Tae | 16.7M |
| Whakamuri | 11S6P |
| Atanga | eDP |
| panel brand | BOE |
| panel model | NV166FHM-N41 (BOE084F) |
| panel size | 16.6" |
| panel type | a-Si TFT-LCD, LCM |
| resolution | 1920(RGB)×1080, FHD, 132PPI |
| pixel format | RGB Vertical Stripe |
| display area | 368.64(W)×207.36(H) mm |
| bezel opening | - |
| outline size | 375.14(W)×231.66(H) ×5.4(D) mm |
| surface | Antiglare |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 1200:1 (Typ.) (TM) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| display mode | ADS, Normally Black, Transmissive |
| best view on | Symmetry |
| response time | 9 (Typ.)(Tr+Td); 3 (Typ.)(G to G) |
| display colors | 16.7M 72% NTSC |
| lamp type | 11S6P WLED , 15K hours , With LED Driver |
| frequency | 144Hz |
| touch screen | Without |
| shape style | Slim (PCBA Flat, T≤3.2mm) |
| application | Laptop Gaming |

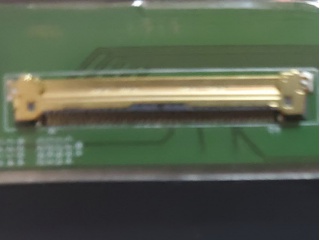

| signal interface | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| input voltage | 3.3V (Typ.) |
| environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
