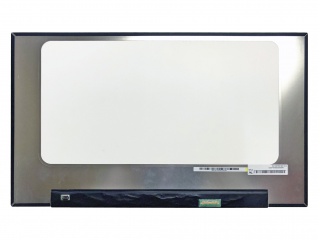

| Nama Wahi | NV156FHM-N63 |
| Waitohu | BOE |
| Rahi | 15.6 |
| Taupānga | Laptop |
| Whakatau | 1920×1080 |
| Te tito | LCM, a-Si TFT-LCD |
| Tirohanga | |
| CR | 800:1 |
| Nga Tae | 262K |
| Whakamuri | 11S4P |
| Atanga | eDP |
| manufacturer | BOE |
| model name | NV156FHM-N63 (BOE07D8) 4 Compatible |
| screen size | 15.6 inch |
| screen type | LCM, a-Si TFT-LCD |
| pixel number | 1920(RGB)×1080 (FHD) 141PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 344.16 × 193.59 (H×V) |
| outline(mm) | 350.46 × 206.25 × 4.6 (H×V×D) |
| bezel area(mm) | - |
| treatment | Antiglare |
| luminance | 300 cd/m² (Typ.) |
| contrast ratio | 800 : 1 (Typ.) (TM) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| response | 30 (Typ.)(Tr+Td) ms |
| good view at | Symmetry |
| work mode | HADS, Normally Black, Transmissive |
| color depth | 262K 72% NTSC |
| backlight | 11S4P WLED , 15K hours , With LED Driver |
| outline shape | Slim (PCBA Bent, T≤3.0mm) |
| used for | Laptop |
| refresh rate | 60Hz |
| touchscreen | Without |
| signal type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| voltage supply | 3.3V (Typ.) |
| max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156HB01 V0 | AUO | 15.6 | 1920×1080 |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LTN156AT02-W01 | Samsung | 15.6 | 1366×768 |
| LTN156KT01-001 | Samsung | 15.6 | 1600×900 |
| LTN156KT01-W01 | Samsung | 15.6 | 1600×900 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
