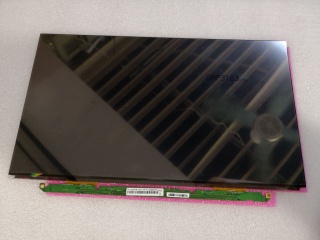

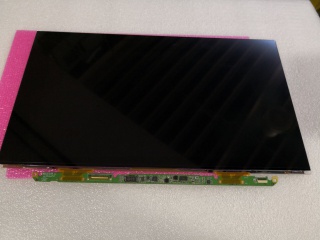

Nama Wahi | NV133FHB-N31 |
Waitohu | BOE |
Rahi | 13.3 |
Taupānga | Laptop |
Whakatau | 1920×1080 |
Te tito | a-Si TFT-LCD , CELL |
Tirohanga | |
CR | 1000:1 |
Nga Tae | 16.7M |
Whakamuri | No |
Atanga | eDP |
brand | BOE |
diagonal size | 13.3 inch |
pixel format | 1920(RGB)×1080 [FHD] 166PPI |
active area | 293.76(H)×165.24(V) mm |
bezel area | - |
luminance | 0 cd/m² |
view direction | Symmetry |
viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
plate thickness | 0.20+0.20 mm |
support color | 16.7M 72% NTSC |
form style | - |
frame rate | 60Hz |
d-ic detail | COG Built-in 4 source chips |
interface type | eDP (2 Lanes) , 30 pins Connector |
power supply | 3.3V (Typ.) |
environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

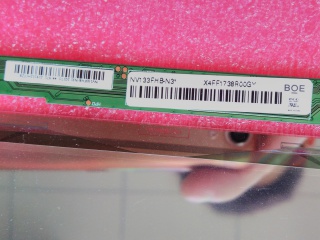

model | NV133FHB-N31 (BOE06E1) |
type | a-Si TFT-LCD , CELL |
configuration | RGB Vertical Stripe |
outline dim. | 298.36(H)×175.29(V) ×0.4(D) mm |
treatment | Without Polarizer |
contrast ratio | 1000:1 (Typ.) (TM) |
response time | 30 (Typ.)(Tr+Td) |
operating mode | ADS, Normally Black, Transmissive |
transmittance | - |
light source | No B/L |
designed for | Laptop |
touch panel | Without |
