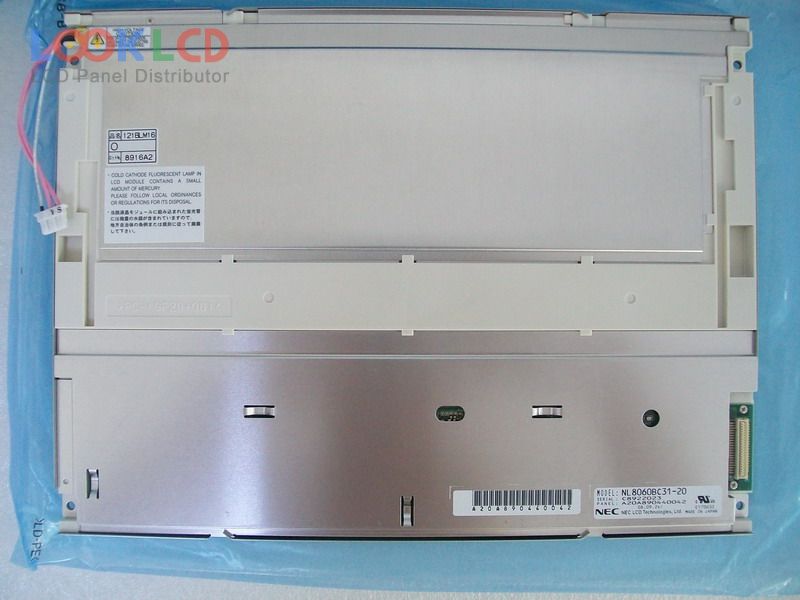

| Nama Wahi | NL8060BC31-20 |
| Waitohu | NLT |
| Rahi | 12.1 |
| Taupānga | IA |
| Whakatau | 800×600 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 400:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | NEC |
| panel model | NL8060BC31-20 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 12.1 inch |
| resolution | 800(RGB)×600 , SVGA |
| display mode | A-SFT, Normally Black, Transmissive |
| active area | 246×184.5 mm |
| outline | 280×210×13.7 mm |
| surface | Clear, Hard coating (3H) |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 262K (6-bit), CIE193138% |
| response time | 40/40 (Typ.)(Tr/Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 41 pins |
| input voltage | 3.3/5.0V (Typ.) |
| rohs: | |
| application | IA |
