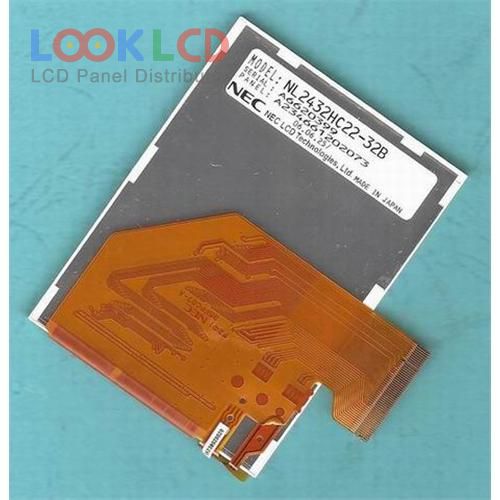

| Nama Wahi | NL2432HC22-32B |
| Waitohu | NLT |
| Rahi | 3.5 |
| Taupānga | PDA |
| Whakatau | 240×320 |
| Te tito | LCM |
| Tirohanga | 100 |
| CR | 70:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | NEC |
| panel model | NL2432HC22-32B |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 3.5 inch |
| resolution | 240(RGB)×320 , QVGA |
| display mode | TN, Normally White, Transflective |
| active area | 53.64×71.52 mm |
| outline | 64×85 mm |
| surface | Antiglare |
| brightness | 100 cd/m² (Typ.) |
| contrast ratio | 70:1 (Typ.)(Transmissive) |
| display colors | 262K (6-bit) |
| response time | 39 (Typ.)(Tr+Td) |
| viewing angle | 25/25/25/20 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | WLED |
| signal interface | CMOS (1 ch, 6-bit) |
| input voltage | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| application | PDA |
