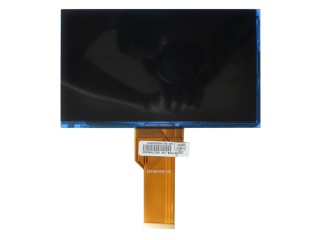

| Nama Wahi | NE070NB-04G |
| Waitohu | Innolux |
| Rahi | 7.0 |
| Taupānga | Digital Photo Frame |
| Whakatau | 800×480 |
| Te tito | a-Si TFT-LCD , CELL |
| Tirohanga | |
| CR | 500:1 |
| Nga Tae | 16.7M |
| Whakamuri | No |
| Atanga | Parallel |
| brand | Innolux |
| diagonal size | 7.0 inch |
| pixel format | 800(RGB)×480 [WVGA] 134PPI |
| active area | 154.08(H)×85.92(V) mm |
| bezel area | - |
| luminance | 0 cd/m² |
| view direction | - |
| viewing angle | 70/70/50/70 (Typ.)(CR≥10) |
| plate thickness | 0.50+0.50 mm |
| support color | 16.7M |
| weight | 47.0g (Typ.) |
| frame rate | 60Hz |
| d-ic detail | COG Built-in 1 source + 1 gate chips |
| interface type | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| power supply | 3.3/10.4/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | NE070NB-04G |
| type | a-Si TFT-LCD , CELL |
| configuration | RGB Vertical Stripe |
| outline dim. | 162.5(H)×96.62(V) ×1.43(D) mm |
| treatment | Antiglare |
| contrast ratio | 500:1 (Typ.) (TM) |
| response time | 25 (Typ.)(Tr+Td) |
| operating mode | TN, Normally White, Transmissive |
| transmittance | 4.61% (Typ.)(with Polarizer) |
| light source | No B/L |
| designed for | Digital Photo Frame |
| touch panel | Without |
