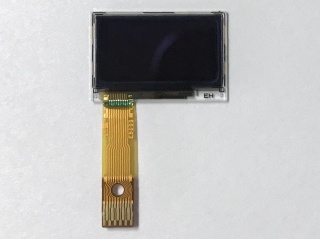

Nama Wahi | MXS4183 |
Waitohu | Soar |
Rahi | 0.50 |
Taupānga | Wearable |
Whakatau | 60×32 |
Te tito | OLED , PM-OLED |
Tirohanga | |
CR | - |
Nga Tae | Mono(White) |
Whakamuri | self |
Atanga | SPI, |
manufacturer | Soar |
model name | MXS4183 |
screen size | 0.50 inch |
screen type | OLED , PM-OLED |
pixel number | 60×32 135PPI |
arrangement | Rectangle |
active area(mm) | 11.25 × 5.986 (H×V) |
outline(mm) | 15.3 × 10.2 (H×V×D) |
luminance | 450 cd/m² (Typ.) |
contrast ratio | - |
viewing angle | - |
response | - |
good view at | - |
work mode | - |
color depth | Mono(White) |
backlight | self , 15K hours |
mass | 0.35g (Typ.) |
used for | Wearable |
refresh rate | - |
touchscreen | Without |
signal type | SPI, I²C , 11 pins FPC |
voltage supply | 3.0/15.0V (Typ.)(VDD/VCC) |
