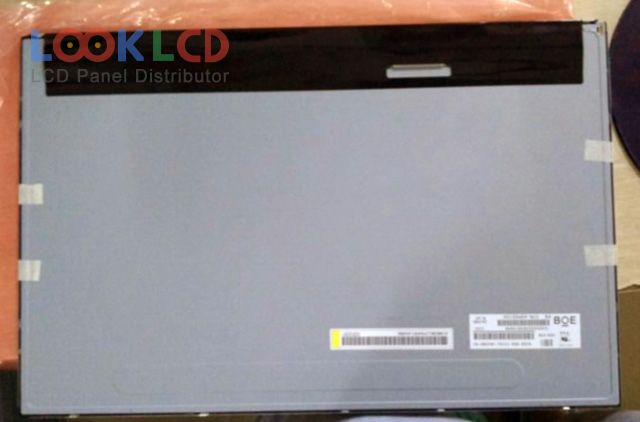

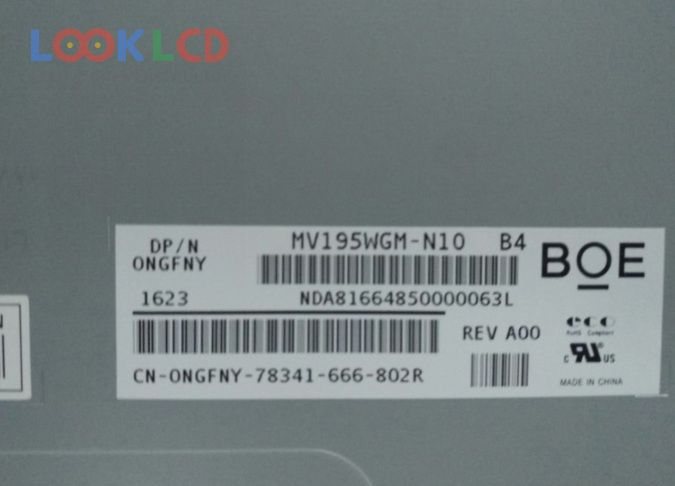

Nama Wahi | MV195WGM-N10 |
Waitohu | BOE |
Rahi | 19.5 |
Taupānga | DMPC |
Whakatau | 1440×900 |
Te tito | LCM |
Tirohanga | 250 |
CR | 1000:1 |
Nga Tae | 16.7M |
Whakamuri | WLED |
Atanga | LVDS |
panel brand | BOE |
panel model | MV195WGM-N10 |
panel type | a-Si TFT-LCD , LCM |
panel size | 19.5 inch |
resolution | 1440(RGB)×900 , WXGA+ |
display mode | ADS, Normally Black, Transmissive |
active area | 418.608×262.35 mm |
outline | 444.22×286.6×10.7 mm |
surface | Antiglare (Haze 25%), Hard coating (3H) |
brightness | 250 cd/m² (Typ.) |
contrast ratio | 1000:1 (Typ.) |
display colors | 16.7M (6-bit + Hi-FRC), CIE193172% |
response time | 14 (Typ.)(G to G) |
viewing angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
frequency | 60Hz |
lamp type | 16S2PWLEDWithout Driver |
signal interface | LVDS (2 ch, 8-bit), 30 pins |
input voltage | 5.0V (Typ.) |
application | DMPC |
