Innolux MT220WW01 V.6 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

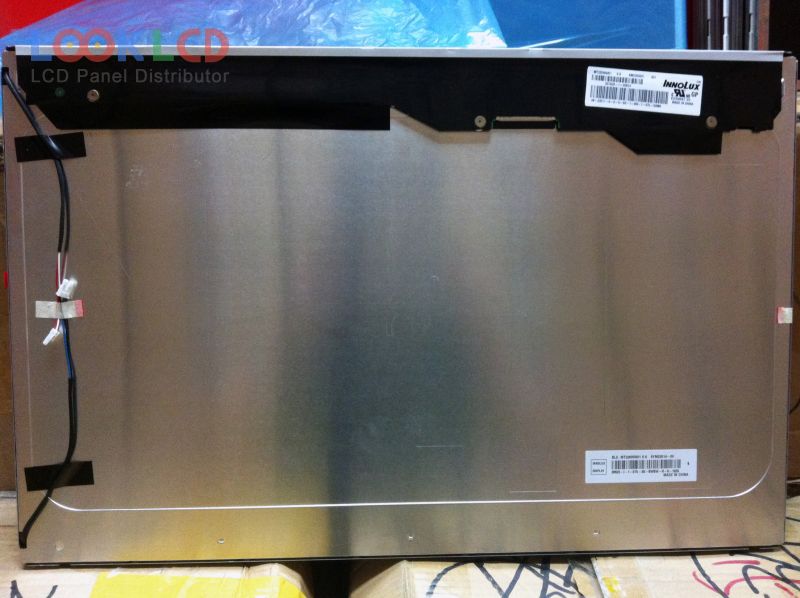

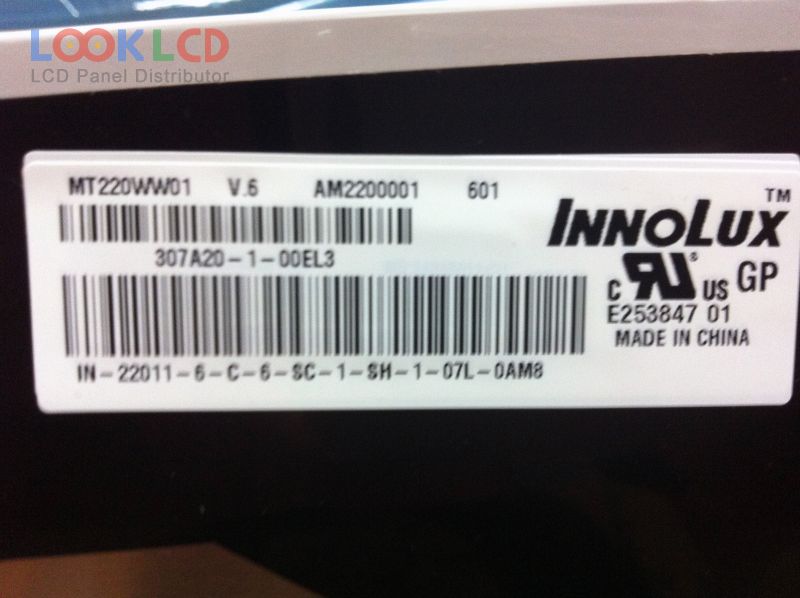

MT220WW01 V.6

MT220WW01 V.6
MT220WW01 V.6
MT220WW01 V.6 thumb MT220WW01 V.6 thumb
Waitohu
Innolux
Rahi
22.0
Taupānga
DMPC
Whakatau
1680×1050
Te tito
LCM
Tirohanga
250
CR
1000:1
Nga Tae
16.7M
Whakamuri
CCFL
Atanga
LVDS
In Stock
3862
Whakatakotoranga

Nama Wahi MT220WW01 V.6
WaitohuInnolux
Rahi22.0
TaupāngaDMPC
Whakatau1680×1050
Te titoLCM
Tirohanga250
CR1000:1
Nga Tae16.7M
WhakamuriCCFL
AtangaLVDS
panel brandINNOLUX
panel modelMT220WW01 V.6
panel type a-Si TFT-LCD , LCM
panel size22.0 inch
resolution1680(RGB)×1050 , WSXGA+
display modeTN, Normally White, Transmissive
active area473.76×296.1 mm
outline493.7×320.1×16.7 mm
surfaceAntiglare (Haze 25%), Hard coating (3H)
brightness250 cd/m² (Typ.)
contrast ratio1000:1 (Typ.)
display colors16.7M (6-bit + Hi-FRC)
response time1.5/3.5 (Typ.)(Tr/Td)
viewing angle85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp type2 pcsCCFLWithout Driver
signal interfaceLVDS (1 ch, 8-bit), 30 pins
input voltage5.0V (Typ.)
applicationDMPC
Tauira Whanau
LM220WE1-TLB2 LG Display 22.0 1680×1050
LM220WE1-TLD2 LG Display 22.0 1680×1050
LM220WE1-TLK1 LG Display 22.0 1680×1050
LM220WE1-TLM1 LG Display 22.0 1680×1050
LTA220W1-L02 Samsung 22.0 1280×720
LTM220MT09 Samsung 22.0 1680×1050
M220Z1-L09 Innolux 22.0 1680×1050
M220Z1-P03 Innolux 22.0 1680×1050
MT220WW01 V.5 Innolux 22.0 1680×1050
MT220WW01 V.6 Innolux 22.0 1680×1050
Hua wera
CLAA150XM05 CPT 15.0 1024×768
HT190WG1-100 BOE 19.0 1440×900
LM185TT1A PANDA 18.5 1366×768
LM201W01-B6K1 LG Display 20.1 1680×1050
LM230WF3-SLB1 LG Display 23.0 1920×1080
LM270WQ1-SDA2 LG Display 27.0 2560×1440
LM270WQ3-SLB2 LG Display 27.0 2560×1440
LTM190M2-L31(Glare) Samsung 19.0 1440×900
NL160120BC27-14 NLT 21.3 1600×1200
SVA190WX01TB SVA-NEC 19.0 1440×900
