Innolux MT190AW01 V.C Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

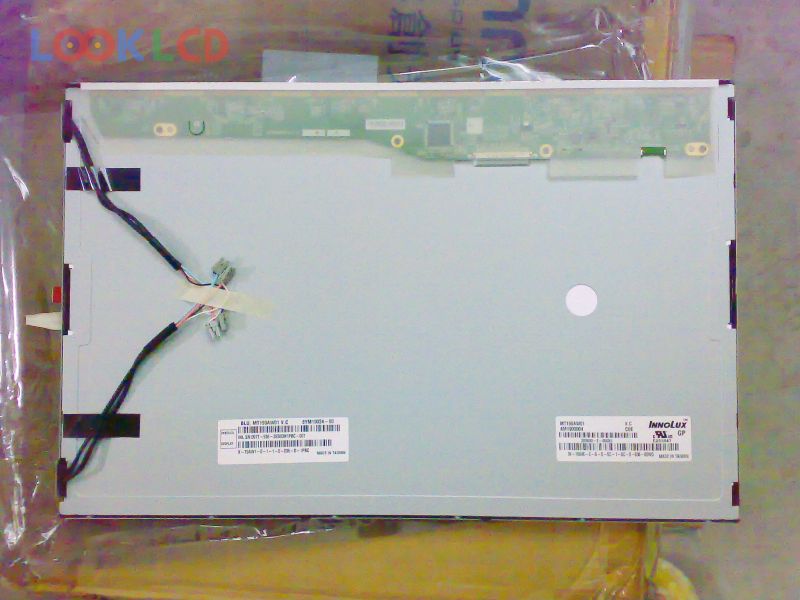

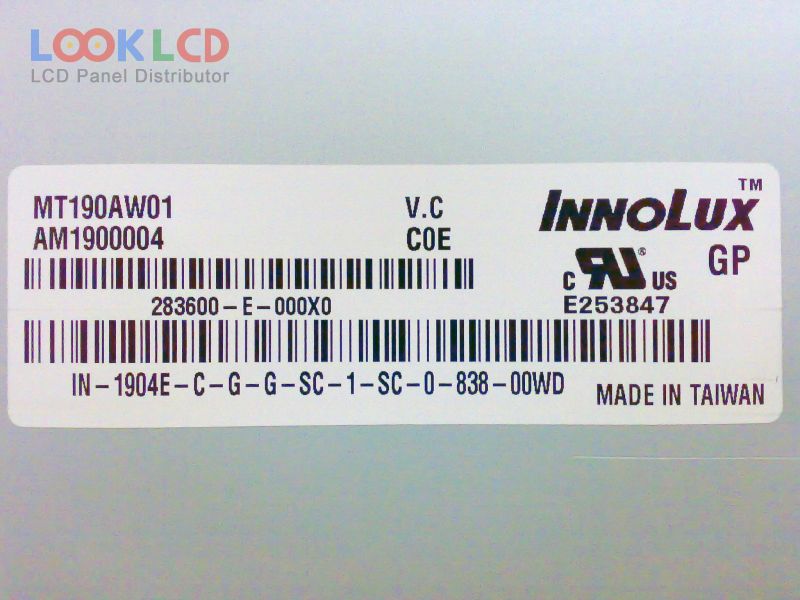

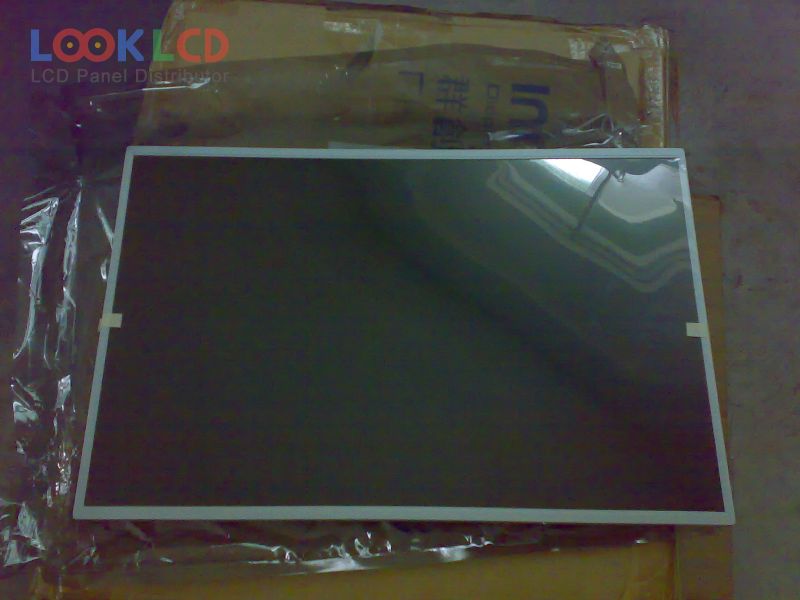

MT190AW01 V.C

MT190AW01 V.C
MT190AW01 V.C
MT190AW01 V.C
MT190AW01 V.C thumb MT190AW01 V.C thumb MT190AW01 V.C thumb
Waitohu
Innolux
Rahi
19.0
Taupānga
DMPC
Whakatau
1440×900
Te tito
LCM
Tirohanga
250
CR
1000:1
Nga Tae
16.2M
Whakamuri
CCFL
Atanga
LVDS
In Stock
7798
Whakatakotoranga

Nama Wahi MT190AW01 V.C
WaitohuInnolux
Rahi19.0
TaupāngaDMPC
Whakatau1440×900
Te titoLCM
Tirohanga250
CR1000:1
Nga Tae16.2M
WhakamuriCCFL
AtangaLVDS
panel brandINNOLUX
panel modelMT190AW01 V.C
panel type a-Si TFT-LCD , LCM
panel size19.0 inch
resolution1440(RGB)×900 , WXGA+
display modeTN, Normally White, Transmissive
active area410.4×256.5 mm
outline427.2×277.4×16.5 mm
surfaceAntiglare (Haze 25%), Hard coating (3H)
brightness250 cd/m² (Typ.)
contrast ratio1000:1 (Typ.)
display colors16.2M (6-bit + FRC)
response time1.5/3.5 (Typ.)(Tr/Td)
viewing angle80/80/80/80 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp type4 pcsCCFLWithout Driver
signal interfaceLVDS (2 ch, 8-bit), 30 pins
input voltage5.0V (Typ.)
applicationDMPC
