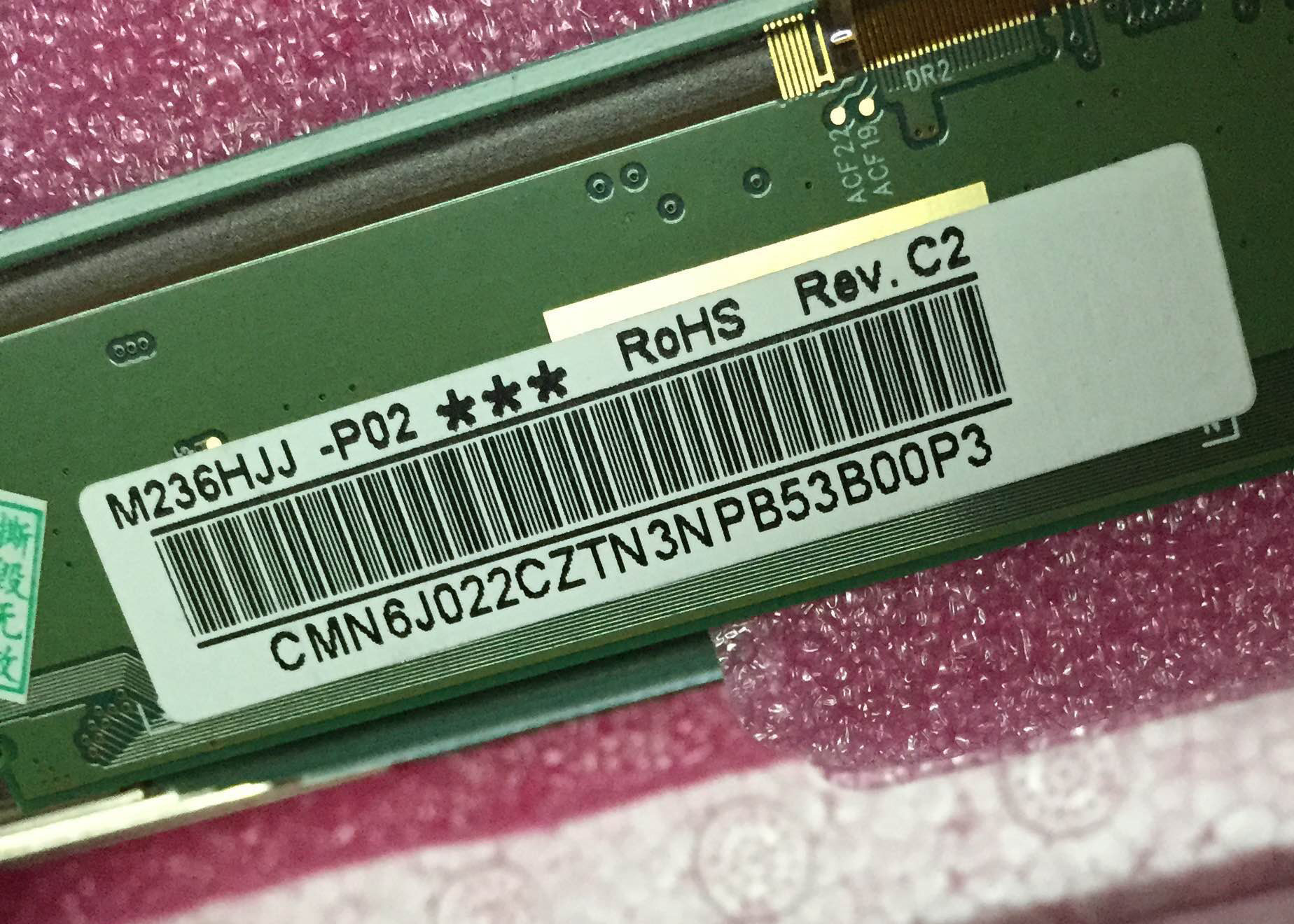

| Nama Wahi | M236HJJ-P02 Rev.C1 |
| Waitohu | Innolux |
| Rahi | 23.6 |
| Taupānga | Desktop Monitor |
| Whakatau | 1920×1080 |
| Te tito | a-Si TFT-LCD, CELL |
| Tirohanga | |
| CR | 3000:1 |
| Nga Tae | 16.7M |
| Whakamuri | No |
| Atanga | LVDS |
| panel brand | Innolux |
| panel model | M236HJJ-P02 Rev.C1 |
| panel size | 23.6" |
| panel type | a-Si TFT-LCD, CELL |
| resolution | 1920(RGB)×1080, FHD, 93PPI |
| pixel format | RGB Vertical Stripe |
| display area | 521.28(W)×293.22(H) mm |
| bezel opening | - |
| outline size | 534.28(W)×306.252(H) mm |
| surface | Antiglare (Haze 3%), Hard coating (3H) |
| brightness | 0 cd/m² |
| contrast ratio | 3000:1 (Typ.) (TM) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| display mode | Super MVA, Normally Black, Transmissive |
| best view on | Symmetry |
| response time | 10 (Typ.)(G to G) |
| glass depth | - |
| transmissivity | 4.6% (Typ.)(with Polarizer) |
| display colors | 16.7M 72% NTSC |
| lamp type | No B/L |
| frequency | 60Hz |
| touch screen | Without |
| driver ic | COFBuilt-in 6 source chips |
| panel weight | TBD |
| application | Desktop Monitor |
| signal interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| input voltage | 5.0V (Typ.) |
| environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
