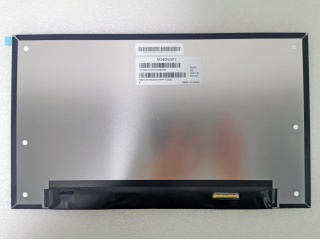

Nama Wahi | M140NWF7 R2 |
Waitohu | IVO |
Rahi | 14.0 |
Taupānga | Laptop Gaming |
Whakatau | 1920×1080 |
Te tito | a-Si TFT-LCD , LCM |
Tirohanga | |
CR | 600:1 |
Nga Tae | 16.7M |
Whakamuri | WLED |
Atanga | eDP |
brand | IVO |
diagonal size | 14.0 inch |
pixel format | 1920(RGB)×1080 [FHD] 157PPI |
active area | 309.31(H)×173.99(V) mm |
bezel area | - |
luminance | 400 cd/m² (Typ.) |
view direction | Symmetry |
viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
support color | 16.7M 72% NTSC |
form style | Slim (PCBA Bent, T≤3.0mm) |
frame rate | 120Hz |
interface type | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
power supply | 3.3V (Typ.) |
environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C |
model | M140NWF7 R2 |
type | a-Si TFT-LCD , LCM |
configuration | RGB Vertical Stripe |
outline dim. | 315.61(H)×186.39(V) ×3.9(D) mm |
treatment | Antiglare, Hard coating (3H) |
contrast ratio | 600:1 (Typ.) (TM) |
response time | 25 (Typ.)(Tr+Td) |
operating mode | IPS, Normally Black, Transmissive |
light source | WLED , 15K hours , With LED Driver |
designed for | Laptop Gaming |
touch panel | Without |
