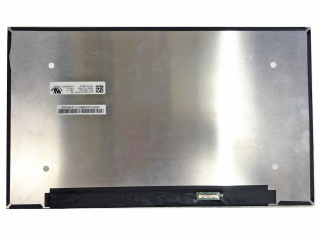

Nama Wahi | M140NWF5 R9 |
Waitohu | IVO |
Rahi | 14.0 |
Taupānga | Laptop |
Whakatau | 1920×1080 |
Te tito | LCM , a-Si TFT-LCD |
Tirohanga | |
CR | 700:1 |
Nga Tae | 262K |
Whakamuri | WLED |
Atanga | eDP |
manufacturer | IVO |
screen size | 14.0 inch |
pixel number | 1920(RGB)×1080 (FHD) 157PPI |
active area(mm) | 309.31 × 173.99 (H×V) |
bezel area(mm) | - |
luminance | 220 cd/m² (Typ.) |
viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
good view at | Symmetry |
color depth | 262K 45% NTSC |
outline shape | Slim (PCBA Bent, T≤3.0mm) |
refresh rate | 60Hz |
signal type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
voltage supply | 3.3V (Typ.) |
max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
model name | M140NWF5 R9 (IVO057D) |
screen type | LCM , a-Si TFT-LCD |
arrangement | RGB Vertical Stripe |
outline(mm) | 315.9 × 186.09 × 5.25 (H×V×D) |
treatment | Antiglare, Hard coating (3H) |
contrast ratio | 700 : 1 (Typ.) (TM) |
response | 25 (Typ.)(Tr+Td) ms |
work mode | IPS, Normally Black, Transmissive |
backlight | WLED , 15K hours , With LED Driver |
used for | Laptop |
touchscreen | Without |
