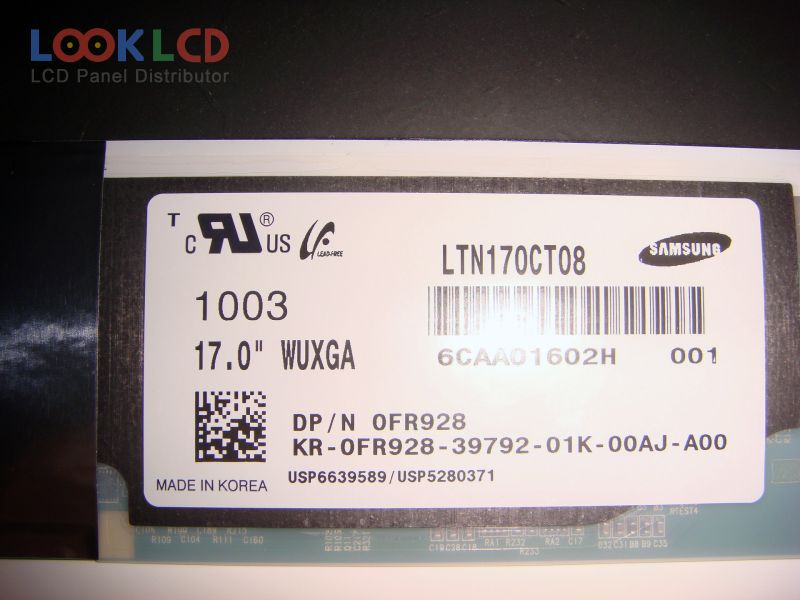

| Nama Wahi | LTN170CT08-001 |
| Waitohu | Samsung |
| Rahi | 17.0 |
| Taupānga | NBPC |
| Whakatau | 1920×1200 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 400:1 |
| Nga Tae | 16.7M |
| Whakamuri | RGB LED |
| Atanga | LVDS |
| panel brand | SAMSUNG |
| panel model | LTN170CT08-001 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 17.0 inch |
| resolution | 1920(RGB)×1200 , WUXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 367.2×229.5 mm |
| outline | 382.2×247.5×6.5 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Antiglare (Haze 25%), Hard coating (4H) |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 400:1 (Min.) |
| display colors | 16.7M (8-bit) |
| response time | 16 (Typ.)(Tr+Td) |
| viewing angle | 65/65/55/55 (Min.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | RGB LEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | NBPC |
| B156XW03 V0 | AUO | 15.6 | 1366×768 |
| HB125WX1-100 | BOE | 12.5 | 1366×768 |
| LP133WH2-SPA1 | LG Display | 13.3 | 1366×768 |
| LP156WH1-TLA3 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TLAA | LG Display | 15.6 | 1366×768 |
| LTD121KX6B | TOSHIBA | 12.1 | 1280×800 |
| LTN150X5-L02 | Samsung | 15.0 | 1024×768 |
| LTN154X3-L01 | Samsung | 15.4 | 1280×800 |
| N141I6-D11 | Innolux | 14.1 | 1280×800 |
| N150P2-L06 | IDTech | 15.0 | 1400×1050 |
