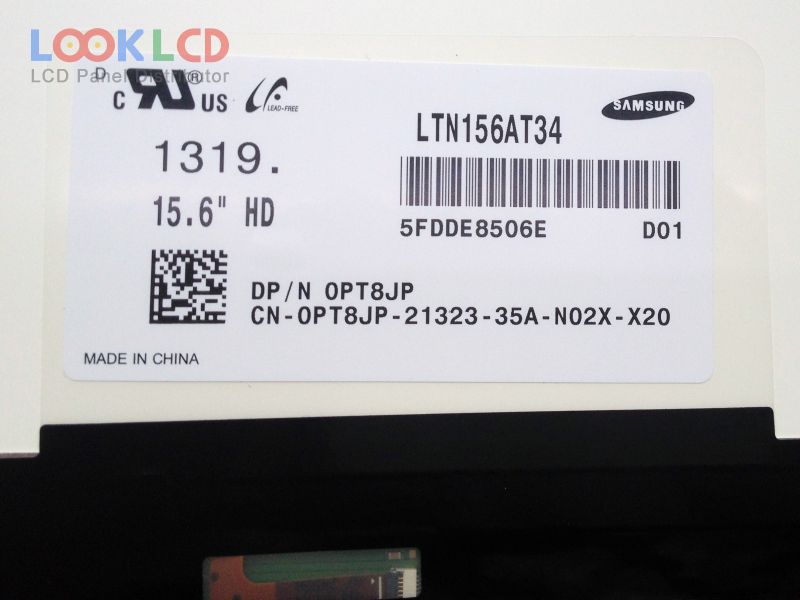

| Nama Wahi | LTN156AT34-D01 |
| Waitohu | Samsung |
| Rahi | 15.6 |
| Taupānga | NBPC |
| Whakatau | 1366×768 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | SAMSUNG |
| panel model | LTN156AT34-D01 5 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 15.6 inch |
| resolution | 1366(RGB)×768 , WXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 344.232×193.536 mm |
| outline | 359.5×223.8×3.2 mm |
| shape style | Slim (PCBA Flat, Depth ≤3.2mm) |
| surface | Glare (Haze 0%) |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 500:1 (Min.) |
| display colors | 262K (6-bit), CIE193145% |
| response time | 16 (Typ.)(Tr+Td) |
| viewing angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | NBPC |
| LTN156AT01-A01 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-701 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-S01 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT32-L01 | Samsung | 15.6 | 1366×768 |
| B156RW01 V1 | AUO | 15.6 | 1600×900 |
| HB140WX1-400 | BOE | 14.0 | 1366×768 |
| LP133WX3-TLA6 | LG Display | 13.3 | 1280×800 |
| LP140WH1-TPD1 | LG Display | 14.0 | 1366×768 |
| LQ084S1DH10 | SHARP | 8.4 | 800×600 |
| LTN133AT23-803 | Samsung | 13.3 | 1366×768 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| LTN160AT02-N01 | Samsung | 16.0 | 1366×768 |
| N154I4-L04 | Innolux | 15.4 | 1280×800 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
