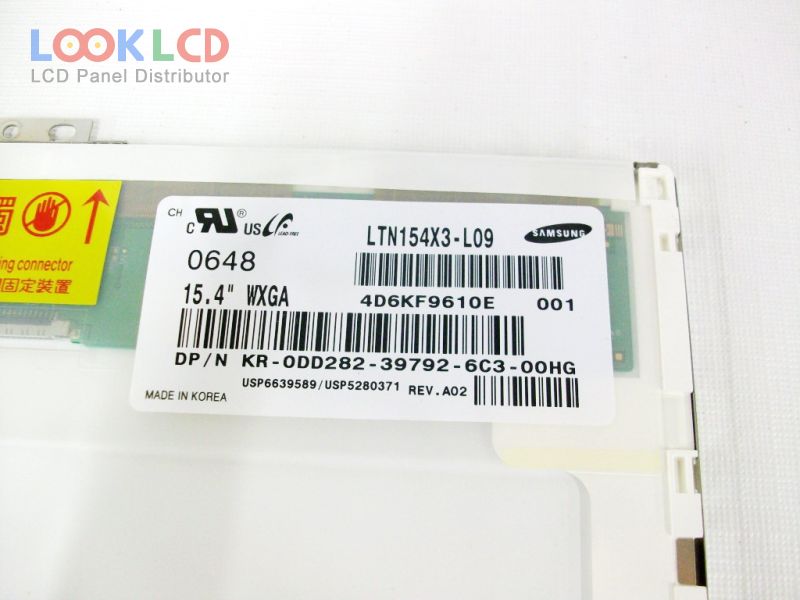

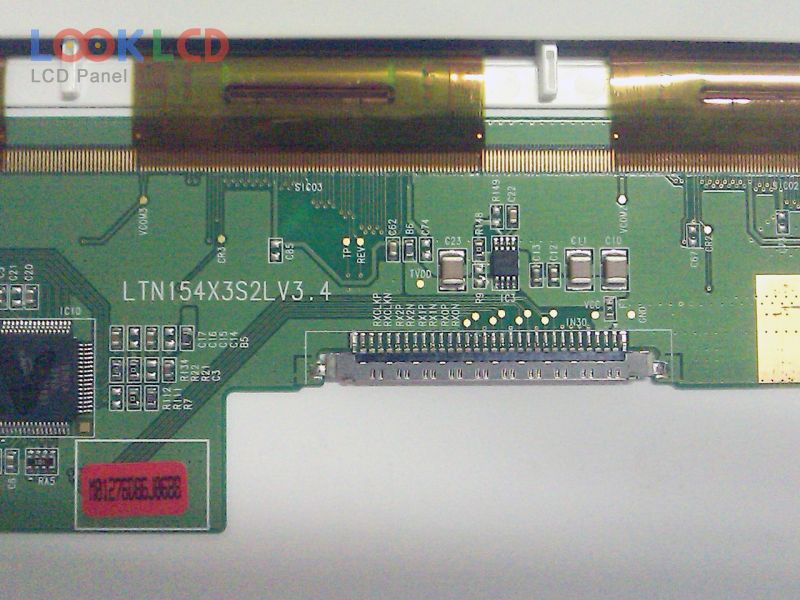

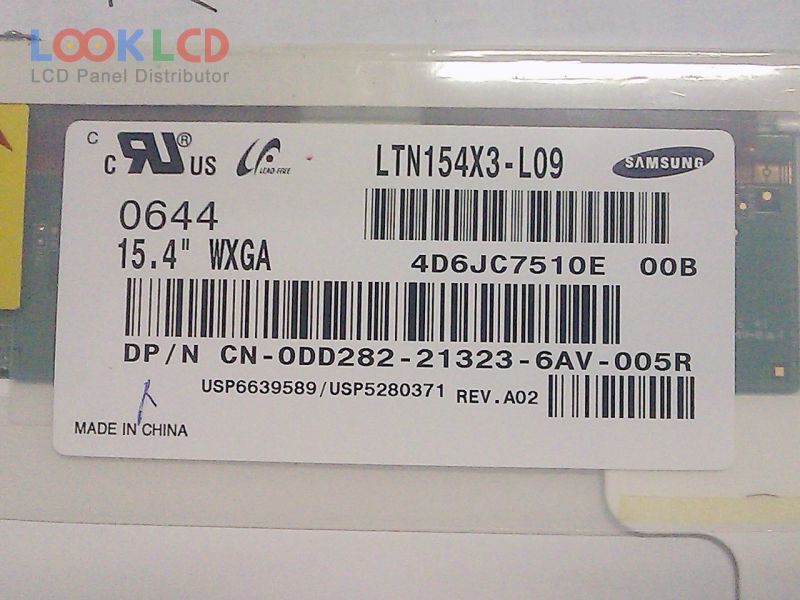

LTN154X3-L09-0

LTN154X3-L09-0
LTN154X3-L09-0
LTN154X3-L09-0
LTN154X3-L09-0 thumb LTN154X3-L09-0 thumb LTN154X3-L09-0 thumb
Waitohu
Samsung
Rahi
15.4
Taupānga
NBPC
Whakatau
1280×800
Te tito
LCM
Tirohanga
160
CR
300:1
Nga Tae
262K
Whakamuri
CCFL
Atanga
LVDS
In Stock
13331
Whakatakotoranga

Nama Wahi LTN154X3-L09-0
WaitohuSamsung
Rahi15.4
TaupāngaNBPC
Whakatau1280×800
Te titoLCM
Tirohanga160
CR300:1
Nga Tae262K
WhakamuriCCFL
AtangaLVDS
panel brandSAMSUNG
panel modelLTN154X3-L09-0
panel type a-Si TFT-LCD , LCM
panel size15.4 inch
resolution1280(RGB)×800 , WXGA
display modeTN, Normally White, Transmissive
active area331.2×207 mm
outline344×222×6.5 mm
shape styleWedge (PCBA Bent, Depth ≥5.2mm)
surfaceGlare (Haze 0%), Hard coating (3H)
brightness160 cd/m² (Typ.)
contrast ratio300:1 (Min.)
display colors262K (6-bit)
response time25 (Typ.)(Tr+Td)
viewing angle50/50/35/50 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp type1 pcsCCFLEmbedded (Inverter)
signal interfaceLVDS (1 ch, 6-bit), 30 pins
input voltage3.3V (Typ.)
applicationNBPC
