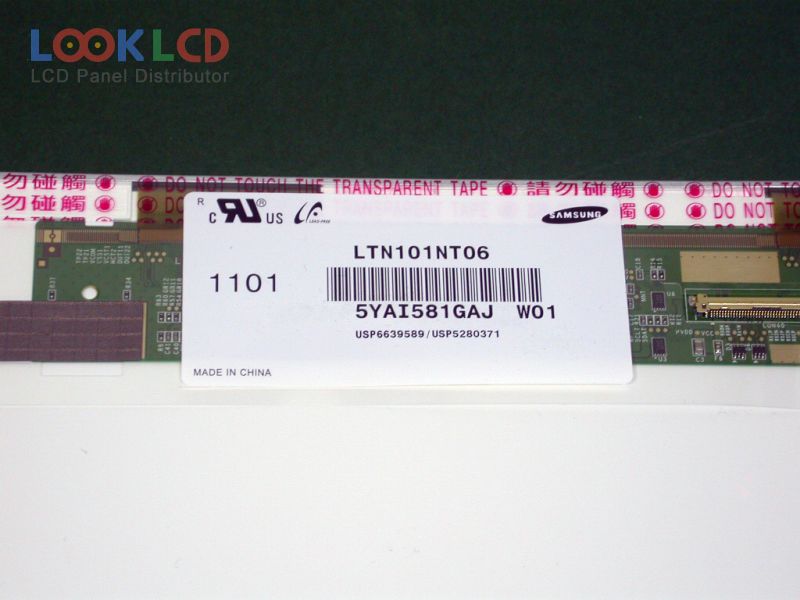

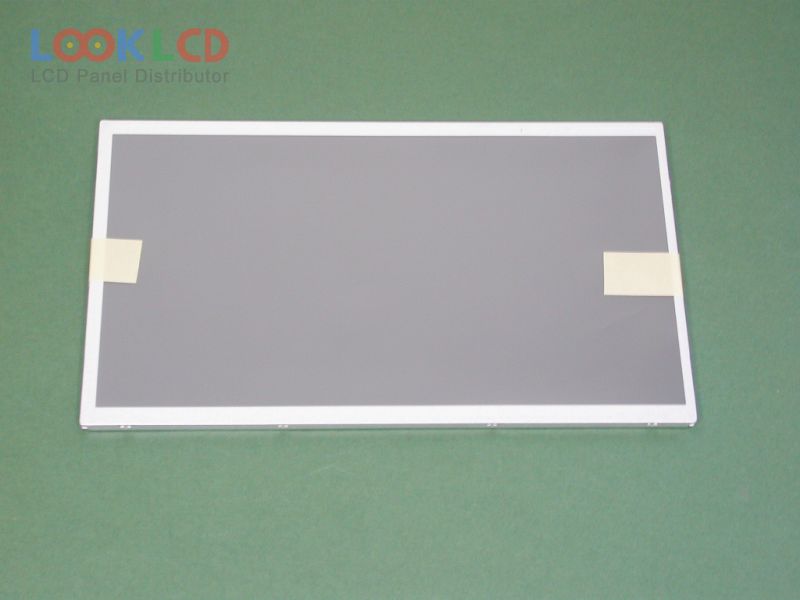

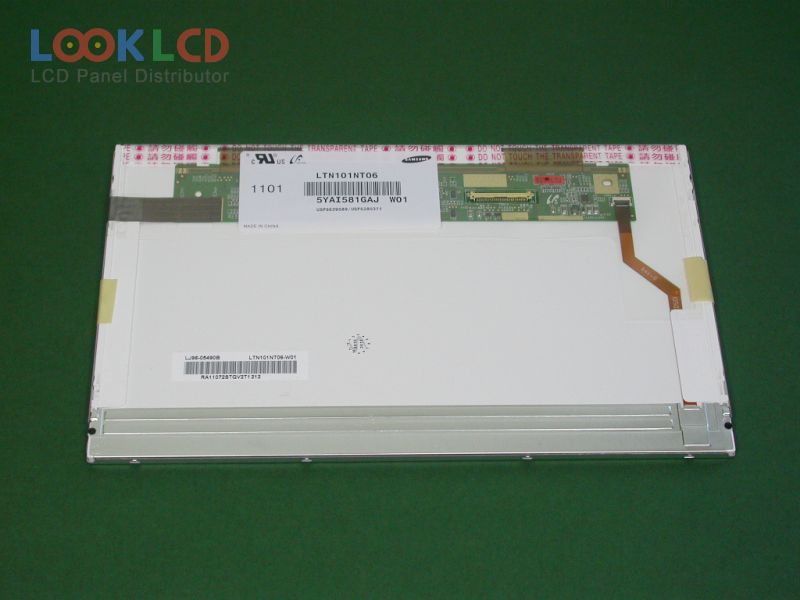

| Nama Wahi | LTN101NT06-W01 |
| Waitohu | Samsung |
| Rahi | 10.1 |
| Taupānga | NOPC |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 300:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | SAMSUNG |
| panel model | LTN101NT06-W01 3 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 222.72×125.28 mm |
| outline | 235×143×5.2 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Antiglare (Haze 25%), Hard coating (3H) |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 300:1 (Min.) |
| display colors | 262K (6-bit), CIE193145% |
| response time | 16 (Typ.)(Tr+Td) |
| viewing angle | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 9S2PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | NOPC |
| B101XAN01.3 | AUO | 10.1 | 1366×768 |
| LTN101NT02-B01 | Samsung | 10.1 | 1024×600 |
| LTN101NT02-L01 | Samsung | 10.1 | 1024×600 |
| LTN101NT02-W05 | Samsung | 10.1 | 1024×600 |
| LTN101NT05-T01 | Samsung | 10.1 | 1024×600 |
| LTN101NT05-U03 | Samsung | 10.1 | 1024×600 |
| LTN101NT06-W01 | Samsung | 10.1 | 1024×600 |
| LTN101NT06-W03 | Samsung | 10.1 | 1024×600 |
| LTN101NT07-W01 | Samsung | 10.1 | 1024×600 |
| LTN101NT08-T01 | Samsung | 10.1 | 1024×600 |
| B101AW01 V2 HW0A | AUO | 10.1 | 1024×576 |
| B116XTN02.3 HW4A | AUO | 11.6 | 1366×768 |
| B116XW05 V001 | AUO | 11.6 | 1366×768 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| LTN101NT05-T01 | Samsung | 10.1 | 1024×600 |
| LTN101NT06-W01 | Samsung | 10.1 | 1024×600 |
| N089L6-L03 | Innolux | 8.9 | 1024×600 |
| N101L6-L0D | Innolux | 10.1 | 1024×600 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
| N116B6-L02 | Innolux | 11.6 | 1366×768 |
