| Nama Wahi | LTI550HN16 |
| Waitohu | SAMSUNG |
| Rahi | 55 |
| Taupānga | Video Wall |
| Whakatau | 1920×1080 |
| Te tito | LCM, a-Si TFT-LCD |
| Tirohanga | |
| CR | 4000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| manufacturer | SAMSUNG |

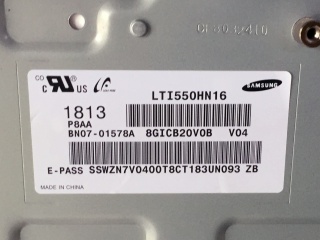

| model name | LTI550HN16 |
| screen size | 55 inch |
| screen type | LCM, a-Si TFT-LCD |
| pixel number | 1920(RGB)×1080 (FHD) 40PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 1209.6 × 680.4 (H×V) |
| outline(mm) | 1211.6 × 682.4 × 68.1 (H×V×D) |
| bezel area(mm) | - |
| treatment | Antiglare (Haze 25%), Hard coating (2H) |
| luminance | 500 cd/m² (Typ.) |
| contrast ratio | 4000 : 1 (Typ.) (TM) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| response | 8 (Typ.)(G to G) ms |
| good view at | Symmetry |
| work mode | SVA, Normally Black, Transmissive |
| color depth | 16.7M 99% sRGB |
| backlight | WLED , 50K hours , With LED Driver |
| splicing seam | 2.0 mm (active to active seam) |
| used for | Video Wall |
| refresh rate | 60Hz |
| touchscreen | Without |
| signal type | LVDS (2 ch, 8-bit) , Connector 51 pins |
| voltage supply | 12.0V (Typ.) |
| max. ratings | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C |
